Forward Error Correction (FEC): Advantages and Disadvantages

This page explores the pros and cons of Forward Error Correction (FEC), detailing its benefits and drawbacks.

What is Forward Error Correction (FEC)?

Introduction:

  • FEC is a method employed to control errors during data transmission.
  • The sender incorporates extra, redundant data into the messages – this is the error correction code.
  • The receiver then uses this redundant information to fix any errors that may have occurred during transmission.

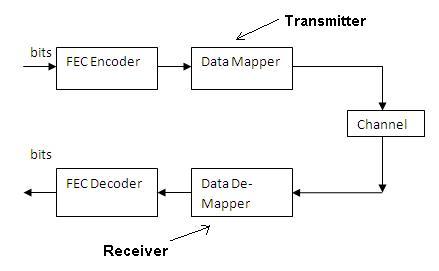

  • Here are a few examples of FEC techniques used in transmitters and receivers:

forward error correction

  • Example #1: Convolution encoder on the transmitting end, and a Viterbi decoder on the receiving end.
  • Example #2: CTC encoder on the transmitting end, and a CTC decoder on the receiving end.
  • Example #3: LDPC encoder on the transmitting end, and an LDPC decoder on the receiving end.

Benefits or Advantages of Forward Error Correction (FEC)

Here’s a rundown of the benefits that FEC brings to the table:

  • High Fault Tolerance: FEC significantly improves fault tolerance, leading to a decreased Bit Error Rate (BER).
  • No Back Channel Needed: Because FEC can correct errors on its own, there’s no need for a return channel to request retransmissions (avoiding ARQ).
  • Simple Implementation: FEC can be put in place using straightforward logic.
  • Cost-Effective: It’s a budget-friendly approach, often starting with software implementations before moving to hardware.
  • Fast Results: Thanks to its algorithms, FEC delivers quick error detection and correction.
  • Real-Time Error Handling: FEC codes can operate in real-time to both detect and correct errors as they happen.

Drawbacks or Disadvantages of Forward Error Correction (FEC)

While FEC offers many advantages, it’s not without its downsides:

  • Data Redundancy: It increases data redundancy, which can affect overall data throughput.
  • Bandwidth Inefficiency: While power-efficient, the extra data overhead makes it less bandwidth-efficient.
