This guide helps in selecting the right IrDA transceiver from various manufacturers. We’ll cover what an IrDA transceiver is and what specifications to consider.

What is an IrDA Transceiver?

Introduction:

An IrDA transceiver is a transceiver that uses the IrDA (Infrared Data Association) protocol and light as its communication medium. Think of it as a wireless version of a serial cable, using infrared light instead of wires.

Figure 1 shows a comparison between wired communication (using RS232) and wireless communication using an IrDA transceiver (like the Microchip MCP21xx).

Wireless configuration using IrDA Transceiver

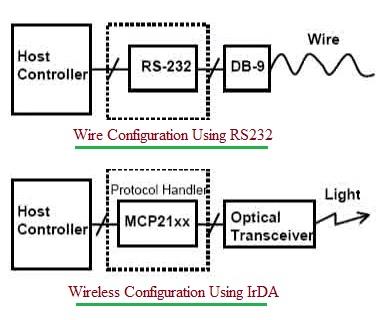

Figure 1: Wireless configuration using IrDA Transceiver

IR stands for Infrared, which utilizes frequencies ranging from 300 GHz to 400 THz, with wavelengths from 1 mm to 750 nm. IR-based devices facilitate communication between devices like PDAs, laptops, mobile phones, and computers, typically over distances of 10 to 30 meters.

Infrared communication modes

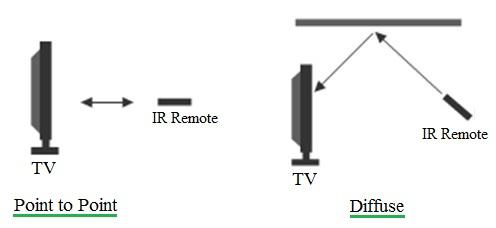

Figure 2: Infrared communication modes

IR devices support two main communication modes:

  • Point-to-Point: Requires a direct Line of Sight (LOS) between the transmitter and receiver.
  • Diffuse: Doesn’t necessarily require a LOS connection.

IrDA Transceiver Selection Guide

When choosing an IrDA transceiver for your application, consider the following specifications:

  • Data Rate: Common options include 115.2 Kbps, 1.152 Mbps, 4 Mbps, and 16 Mbps. Choose one that meets your bandwidth needs.
  • Voltage Supply: Transceivers operate at different voltages (e.g., 1.7V to 2.5V). Make sure it’s compatible with your system.
  • Idle Current: The amount of current the transceiver draws when not actively transmitting. Lower is better for power saving, measured at 25°C.
  • Link Range: The maximum communication distance in centimeters (cm). This depends on the application requirements.
  • Peak Wavelength: Measured in nanometers (nm), determines the specific infrared wavelength used.
  • Radiant Intensity: Measured in milliwatts per steradian (mWatt/Sr), indicates the power of the emitted infrared light.
  • Orientation: The physical orientation of the transceiver (Side View, Top View, or Universal) will dictate how it’s mounted in your device.
  • Operating Temperature: The temperature range within which the transceiver will function correctly.
  • Standards Supported: Different IrDA standards exist (IrDA 1.2, IrDA 1.3, IrDA 1.4, etc.). Ensure compatibility with the devices you need to communicate with.
  • Package Type: Available in various formats like Cut Tape, Digi-Reel™, Tape & Reel, and Tube for different assembly processes.

IrDA Transceiver Manufacturers

Here’s a list of popular IrDA Transceiver manufacturers:

  • Zilog
  • Vishay
  • Sharp Microelectronics
  • Rohm Semiconductor
  • Panasonic Electronic Components
  • Lite-On Inc.
  • Texas Instruments
  • Linear Technology
  • Cypress Semiconductor
  • Maxim Integrated
  • Broadcom
  • Cirrus Logic
