Antenna switches are vital for seamless signal transmission in 5G mobile phones. They enable efficient frequency switching, ensuring optimal network performance. This guide highlights the top manufacturers producing advanced 5G antenna switches for 5G/LTE mobile applications.

What is an Antenna Switch?

Reconfigurable antennas are mainly designed based on four parameters: frequency, bandwidth, radiation pattern, and polarization. Based on these, there are different reconfigurable antenna types. Switches are used between antennas and filters/duplexers/multiplexers for aperture and impedance tuning purposes.

Switches are made using different techniques such as RF MEMS, varactor diodes, and PIN diodes. Optically activated switches are used in fiber optic systems. RF MEMS switches offer speeds ranging from 1 to 200 µs.

Antennas with varactor diodes and capacitance can be controlled using varying bias voltage, offering a wide tuning range. PIN diode-based switches are used for fast switching (1 to 100 nsec) and fast dynamic reconfiguration designs.

5G Mobile Phone Front End Part

Image Courtesy: www.avidscience.com

The figure depicts the front end part of a 5G mobile phone with the position of the antenna switch and antenna tuner.

Skyworks antenna tuning switch

Image Courtesy: Skyworks

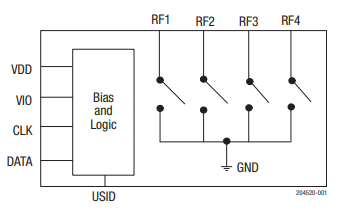

The figure depicts antenna tuning switch part number SKY19256-701LF from Skyworks. It operates from 0.6 to 6 GHz and houses an array of four SPST switches. It requires ultra-low ON resistance and low OFF capacitance for tuning.

5G Antenna Switch Specifications

The following specifications or parameters are considered when selecting an antenna switch for 5G mobile phone design:

  • Application type: Aperture tuning or impedance tuning
  • Frequency range of operation
  • Switching mode type: SPST (single-pole, single-throw), SP3T (Single Pole Triple Throw), etc.
  • Bias and control logic such as MIPI (Mobile Industry Processor Interface)
  • ON Resistance, OFF Capacitance
  • Package type such as QFN

5G Mobile Phone Antenna Switch Manufacturers

The following table mentions manufacturers of antenna switches for 5G NR mobile phones with part numbers and technical features.

5G mobile phone antenna switch ManufacturersDescription
Skyworks• Part no: SKY19256-701LF, SKY19247-686LF • SKY19256-701LF operates from 0.6 to 6 GHz and it is a 4 x SPST switch. • The above switch can be used for antenna tuning applications. • The switch can be controlled by the MIPI controller.
QorVo• Offers antenna switch modules for various cellular standards such as GSM, EDGE, UMTS, CDMA2000, LTE, 5G etc. • Part number RF1119A can be used as SP4T (Single Pole Four Throw) switch applications. It supports frequencies from 400 to 3000 MHz. • Visit the QorVo website for other antenna switch modules.
Infineon• Part no: BGSA13GN10 • It supports single pole, triple throw tuning. • It can be used from 500 MHz to 5 GHz frequency range.
Qualcomm• The company offers antenna modules and superior RF front-end solutions which include Power Amplifier, RF Switch and Switch modules, LNA, Filters, antenna tuning solutions, Power Trackers, diversity receiver modules, and so on. These RF front-end solutions are used by various mobile phone manufacturers such as LG, Samsung, Nokia, Sony, Motorola, Xiaomi, Oppo, OnePlus, ZTE, ASUS, HTC, Google in their designs. • QTM525 and QTM527 are mmwave antenna modules.

Conclusion

With 5G technology evolving, antenna switch manufacturers continue to develop high-speed, low-loss solutions to enhance mobile connectivity. Choosing the right supplier ensures better network reliability and performance.
