Fiber cable modems and optical routers are essential components of modern broadband connectivity, providing fast and reliable internet access. While both are critical in transmitting data, they differ significantly in function, technology, and use cases. In this guide, we’ll explore the differences between fiber cable modems and optical routers and list leading manufacturers providing state-of-the-art fiber optic networking solutions.

Introduction

Fiber optic cables transmit information by modulating various parameters of light. The system requires light-transmitting devices such as LEDs/lasers and light-receiving devices such as photodiodes or photodetectors. Fiber optic internet has become popular due to its many benefits. Fiber optic systems carry huge amounts of data at very high speeds with low loss per kilometer. Moreover, they are immune to electromagnetic interference.

Fiber Cable Modem

  • A modem encodes (at the transmit end) and decodes (at the receive end) data. “Modem” is short for modulator and demodulator.
  • Modems operate at Layer 2, the data link layer.
  • It serves as the interface between the ISP (Internet Service Provider) and the home network, such as WLAN or LAN.
  • A fiber optic modem connects a fiber optic network and a home network.
  • It converts electrical signals to optical signals and vice versa for transmission to and from the fiber optic cable.
  • A modem works independently of the router and provides connectivity between a PC and the ISP’s server.

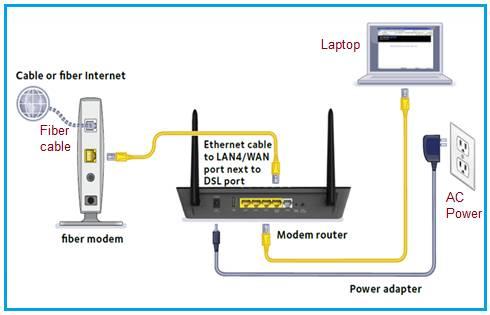

Fiber optic modem, Fiber optic router

Image Courtesy: Netgear

Fiber Optic Router

  • A router delivers information or packets collected by the modem to their destination based on IP address/Ethernet address. The modem brings information into the home network, and the router distributes it to the appropriate end device.
  • A router operates at Layer 3, the network layer.
  • It acts as the interface between the modem and computer, and between two computers.
  • Routers can exchange information between two computers, but they cannot provide internet connectivity without a modem.
  • Fiber optic routers, like most generic routers today, come with built-in Wi-Fi. Wi-Fi allows devices to connect to the router wirelessly using WLAN protocols.
  • Devices are available that house both modem and router functionalities.

Fiber Optic Cable Modem & Router Manufacturers

The following table lists manufacturers of fiber optic cable modems and routers, along with their part numbers, features, and technical specifications.

Vendor or ManufacturerDescription
Alcatel Lucent• Fiber Optic modem: G240GA ($20)

• Fiber Optic modem: G-010G ($40) • G-240W-B GPON Optical Network Terminal | | ASUS | • RT-AC68U Dual-Band Gigabit Wi-Fi Router: Features high-speed wireless performance with advanced parental controls. | | BELKIN | • N600 DB Wireless Dual Band N+ Router (F9K1102): A versatile router offering dual-band performance for seamless wireless connectivity. | | NETGEAR | • Nighthawk AC1900 Router with DOCSIS 3.0 Cable Modem (C7000-100NAS): Combines a high-speed cable modem with a powerful Wi-Fi router for optimal performance. | | D-LINK | • Models such as DIR 615, DIR 816, DIR 825 etc. are available. • AC1750 Wi-Fi Router (DIR-867): Delivers high-speed wireless connectivity with advanced security features. | | TP-LINK | • Models Archer AC1200, C50 C20 C20i C2, WR740N are available. • Archer C7 AC1750 Wireless Dual Band Gigabit Router: Provides reliable dual-band Wi-Fi with gigabit Ethernet ports for wired connections. | | Motorola | • MB8611 DOCSIS 3.1 Multi-Gig Cable Modem | | ARRIS | • SURFboard SBG10 DOCSIS 3.0 Cable Modem & Wi-Fi Router | | Hitron | • CODA DOCSIS 3.1 Modem | | Ubiquiti Networks | • UFiber Loco GPON Optical Network Unit |

Conclusion

Fiber cable modems and optical routers each play vital roles in high-speed internet connectivity, but their functions and applications differ significantly. Fiber modems focus on converting optical signals for internet access, while optical routers manage data routing across networks. By understanding these differences and evaluating offerings from top manufacturers, you can choose the device that best aligns with your internet needs. These manufacturers provide innovative solutions that meet the demands of modern networking, offering enhanced performance and scalability for both residential and commercial users.
