This page delves into the basics of analog front ends (AFEs), outlining their key modules and listing manufacturers specializing in AFEs designed for heart rate monitoring.

Introduction

Accurate heart rate measurement is crucial for detecting various health conditions, including:

  • Tachycardia: Fast heart rate
  • Bradycardia: Slow heart rate
  • Arrhythmia: Irregular heart rate

Heart rate monitors have become essential tools for this purpose. AFEs play a vital role in these monitors by directly conditioning the signals received from sensors placed on or near the heart.

The following image illustrates the typical use of an AFE in a health monitoring system:

Health Monitoring System

As shown, a typical AFE incorporates several key components:

  • Analog Amplifier
  • Filters
  • Sample and Hold Circuits
  • Analog-to-Digital Converters (ADCs)
  • Instrumentation Amplifiers (InAmps)

Let’s examine each of these components in more detail.

Key AFE Components

Analog Amplifier

This is usually implemented using an operational amplifier (op-amp). A Trans-Impedance Amplifier (TIA) converts the current signal from the sensor into a voltage signal and amplifies it to the desired level.

Filters

Filters are essential for selectively passing desired frequency components while blocking unwanted noise or interference. Different filter types (e.g., low-pass, high-pass, band-pass) are used based on the application.

Sample and Hold Circuits

These circuits capture a voltage sample at a specific point in time and hold that value for a short duration, allowing the ADC to accurately convert the signal. They typically consist of an analog switch, a capacitor, and a buffer.

Analog-to-Digital Converters (ADCs)

ADCs convert analog signals into digital signals (often in 2’s complement form). They provide the crucial interface between analog sensors and microcontrollers, allowing for digital processing and analysis of the sensor data. Analog sensors used can include accelerometers, flex sensors, temperature sensors, and more.

Instrumentation Amplifier

These are differential operational amplifiers with high input impedances. They are designed to amplify small differential signals while rejecting common-mode noise, which is very important for accurate physiological measurements.

LEDs and Photodiodes

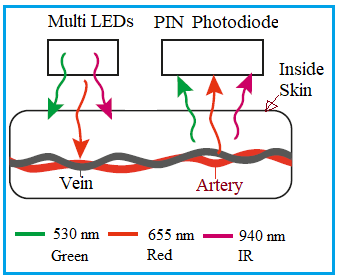

LEDs and Photodiodes for Heart Rate and SpO2 measurement

Optoelectronic components like LEDs and photodiodes are used for measuring heart rate, SpO2 (blood oxygen saturation), and other health parameters.

Analog Front End ICs Manufacturers

The following table lists some of the leading manufacturers and vendors of AFE ICs used in heart rate monitoring systems:

ManufacturersDescription
Texas InstrumentsModel : AFE4403 The device consists of low noise receiver, LED, Photodiode, Oscillator, ADC, digital filter, amplifier, SPI interface etc. Refer product datasheet at ti.com website. Applications : pulse oximeter, photometry, optical heart rate monitoring etc.
Dialog Semiconductor (Acquired by Renesas Electronics Corporation)Model : SLG47004 Features : Houses two Op-amps with configurable bandwidth, two SPST analog switches, three analog comparators, three oscillators, Macrocells, I2C interface, built in analog temperature sensor etc.
Analog DevicesModels : AD5940/AD5941 The products have various features. Refer datasheets at analog.com website for all the features, functional block diagrams, pin outs and other technical specifications.
Maxim IntegratedProduct : MAX86170A Features : It houses both transmit/receive channels used as optical data acquisition system. Transmit part supports 6 LED driver outputs. Receive part supports 2 low noise front ends with independent ADCs (20 bits) in each chain and light cancellation circuits. Refer website maximintegrated.com for more information.
NXP SemiconductorsCompany develops healthcare AFE reference platforms. Refer Application note AN4059 on heart rate monitoring and ECG fundamentals. It mentions analog front end ICs along with implementation diagrams. Visit nxp.com for AFE product series.
