RF varactor diodes are voltage-controlled capacitors commonly used in frequency tuning applications. They offer key benefits such as low power consumption and fast tuning.

Popular manufacturers of RF varactor diodes include MACOM, NXP, Infineon, Skyworks, Cobham Metelics, and Sanyo Semiconductor Corporation.

What is an RF Varactor Diode?

A varactor diode is a special type of PN junction diode where the PN junction capacitance is varied by changing the reverse bias voltage.

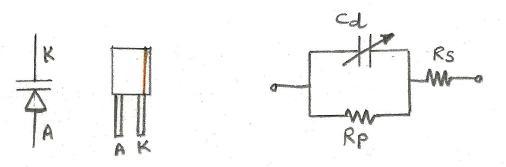

The figure below depicts the varactor diode symbol and its equivalent circuit elements.

varactor diode

Varactor diodes are often manufactured using gallium arsenide. The formula for varactor capacitance is:

Cj=CK(VbV)mC_j = \frac{C_K}{(V_b - V)^m}

As the formula indicates, the capacitance (CjC_j) is proportional to the reverse bias voltage (“V”).

Varactor diodes have numerous applications, including resonance circuits, AFC (Automatic Frequency Control), frequency modulators, RF phase shifters, and microwave receivers.

Selection Guide

When selecting an RF varactor diode, consider the following specifications:

  • Capacitance
  • Forward continuous current
  • Peak reverse voltage
  • Reverse voltage
  • Operating temperature
  • Reverse current
  • ROHS compliance
  • Package type

Applications of RF Varactor Diode

RF varactor diodes are widely used in RF and microwave circuits due to their ability to vary capacitance in response to an applied reverse voltage. Common applications include:

  • Frequency Modulation (FM): Used in voltage-controlled oscillators (VCOs) and frequency synthesizers to adjust the frequency of oscillators in communication systems.
  • Tuning Circuits: Used in tuning circuits for radio receivers and transmitters, enabling dynamic tuning across a range of frequencies.
  • Automatic Frequency Control (AFC): Essential in automatic frequency control systems, where they adjust the frequency of oscillators to lock onto the desired frequency.
  • Phase Locked Loops (PLLs): Integral in PLL circuits used in radio communications, radar, and TV broadcasting to stabilize the frequency of oscillators.
  • Power Amplifiers: Used in RF power amplifiers to control gain by dynamically adjusting capacitance in the circuit.

Advantages of RF Varactor Diode

Here are some key benefits of using RF varactor diodes:

  1. Adjustable Capacitance: The capacitance can be adjusted by varying the applied reverse voltage, providing flexibility in tuning and frequency control for RF circuits.
  2. High-Frequency Operation: RF varactor diodes operate effectively at high frequencies, making them ideal for use in communication, radar, and satellite systems that require precise frequency control.
  3. Compact and Low Power: They are compact and consume minimal power, making them well-suited for portable and battery-operated devices.
  4. Stable Performance: Varactor diodes offer stable performance over a wide range of operating conditions, providing reliable tuning and frequency control in RF systems.
  5. Cost-Effective: Varactor diodes are an economical solution for achieving frequency tuning and voltage control in RF circuits, reducing the need for expensive mechanical tuning methods.

RF Varactor Diode Manufacturers

The following table lists RF varactor diode manufacturers, along with their part numbers and technical features:

RF varactor diode ManufacturersDescription
MACOM• Part Number: MA46H120 (GaAs constant Gamma Flip-Chip Varactor Diode) • Features: Low Parasitic Capacitance and inductance, High Q, Silicon Nitride Passivation, Polyimide Scratch Protection etc. • It is used in ISM applications. • Specifications: Capacitance: 0.35 pF, Gamma: 1, Breakdown voltage: 15V, Quality Factor @ 50 MHz, Min: 3000 • Website: macom.com
NXP Semiconductor• Part number: BB208-03 (Variable Capacitance diode as per planar technology) • Features: high ratio, very low series resistance, excellent CV linearity, very small SMD plastic packages etc. • Other parts: BB202, BB172 • Website: nxp.com
Infineon Technologies• Part number: BB914 • Features: Good linearity for C-V curve, high figure of merit, high tuning ratio at low supply voltage, RoHS compliant etc. • Refer BB914 datasheet for technical specifications of the product. • Other parts: BB833, BB664, BB639E7904 etc. • Website: infineon.com
Skyworks solutions• Part number: SMV1405 series • Plastic Packaged Abrupt Junction Tuning Varactors • Features: High Q, Low series resistance for low phase noise etc. • Other parts: SMV2020 series, SMV2021 series, SMV1470 series • Website: skyworksinc.com
Cobham Metelics• Part number: MGV125-20 • Capacitance ratio: 4 to 8.6, Forward continuous current: 100 mA, Q factor: 4000, reverse voltage: 22V and so on. • Website: cobham.com
Sanyo Semiconductor Corporation• Part number: SVC321SPA • It is used for AM receiver electronic tuning. • It offers good linearity, high capacitance ratio and so on. • Refer Website: digchip.com for technical specifications and other part numbers.

Conclusion

Selecting the right RF varactor diode can significantly enhance circuit performance. Explore trusted manufacturers for high-quality components that meet your specific needs.
