The term iDEN stands for Integrated Digital Enhanced Network.

This technology was developed by Motorola and combines the benefits of both trunked radio and cellular telephone systems. iDEN uses GSM signaling for call establishment and MM (Mobility Management). The existing GSM protocol stack has been modified in iDEN with additional specifications and features.

Sprint/Nextel launched iDEN networks globally in select countries to provide services to their customers. iDEN technology offers the following benefits:

  • Provides two-way digital radio service.
  • Supports the features of a typical digital wireless phone.
  • Provides SMS services.
  • Provides data services using an existing IP network.

Features of iDEN Network

The following table summarizes the key features of the iDEN network:

SpecificationsiDEN network
Radio Technology TypeDigital
Access TechniqueFDMA (Frequency Division Multiple Access), TDMA (Time Division Multiple Access)
Frequency of operation800 MHz Band, 806-821 MHz for Transmit and 851-866 MHz for Receive
Channel Bandwidth25 KHz
Number of time slots/channel6
ModulationM16-QAM
Number of UsersTotal 30 frequencies and 6 users per frequency are supported
Data rate96 Kbps
Mode of communicationDirect Connect or Push to Talk (PTT)

Working of iDEN System

iDEN network

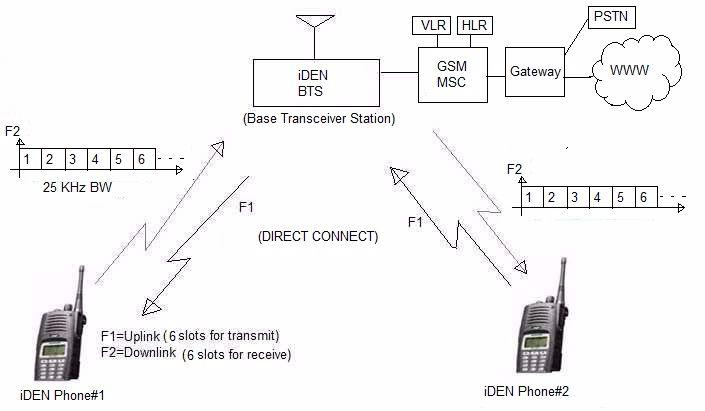

Figure 1: iDEN Network Architecture

Let’s break down how the iDEN network system works, as illustrated in Figure 1.

  • An iDEN network comprises two primary components: Base Transceiver Systems (BTS) and iDEN phones.
  • The BTS interfaces with GSM subsystems like the MSC (Mobile Switching Center) and GMSC (Gateway MSC) to connect with GSM infrastructure systems.
  • As shown, dedicated downlink (851 to 866 MHz) and uplink (806 to 821 MHz) bands are used.
  • The band is divided using FDMA with 25 KHz channel spacing. TDMA provides 6 slots in each channel to accommodate more users. Furthermore, speech compression is utilized to increase the number of users supported by the iDEN network.
  • The iDEN handset contains a SIM card, similar to a GSM mobile phone.

When the user switches on the phone, they’ll see the list of available iDEN users on the display. They can connect directly using PTT (Push-To-Talk) and begin communicating without needing to call or ring the recipient’s iDEN phone. This functionality is similar to a Walkie-Talkie.

The iDEN network supports approximately 30 frequencies, with about 6 users able to interact on each frequency. Typically, iDEN phones support features like GPS and WAP. They also support the standard features of a normal GSM mobile phone.

A Digital Access Cross-connect switch can connect T1/E1 lines with iDEN equipment. A gateway can be used to provide connectivity with PSTN, ISDN, and PDN (Packet Data Network).
