Timing and Synchronization in Femtocell Networks

femtocell
synchronization
network
timing
cellular

Timing and synchronization are fundamental aspects of femtocell operation that impact network performance and data integrity. Proper synchronization ensures that femtocells operate in harmony with the broader cellular network, avoiding interference and signal degradation. This page covers the importance of timing and synchronization in femtocell networks, the techniques used, and the challenges faced in maintaining accurate timing across femtocell deployments.

Timing and synchronization are crucial for femtocell operation as they ensure seamless integration with the macro cellular network and prevent interference between neighboring femtocells.

Femtocells need to maintain accurate time and frequency synchronization with the core network to provide reliable communication and avoid signal misalignment. If a femtocell is not properly synchronized, it can lead to issues such as call drops, data packet loss, and inefficient resource allocation.

Accurate synchronization also allows for proper handovers between femtocells and macro cells, maintaining service continuity for users as they move across different coverage areas.

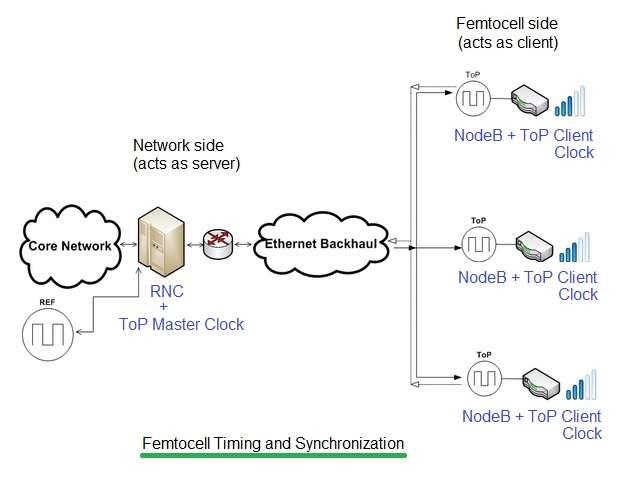

The figure depicts femtocell timing and synchronization process.

femtocell timing and synchronization

Femtocell synchronization methods

Femtocells typically achieve synchronization using one of the following methods.

  1. GPS-Based Synchronization: Femtocells equipped with GPS receivers can directly obtain timing and frequency information from GPS satellites, ensuring high precision.

  2. Network-Based Synchronization: In cases where GPS is not feasible (e.g., indoor deployment), femtocells rely on the core network for synchronization using protocols like IEEE 1588 Precision Time Protocol (PTP) or Network Time Protocol (NTP). This method utilizes packet-based timing information exchanged over IP connections. Advanced Timing over Packet (known as ToP) is installed on both client (Femtocell AP) and server side (RNC).

    Each of the packets transmitted from RNC are time stamped. Similarly, when a packet is received at RNC, an ACK is returned immediately. Using this ACK, the client adjusts its clock.

    Femtocells also often obtain timing information from neighboring macro cells (i.e., cellular towers).

    Crystal oscillators (OCXO, TCXO) can also be used as a stable timing reference in femtocells, but they are costly for user (customer) grade service applications. Cheaper oscillators can be used for this purpose.

Conclusion

Accurate timing and synchronization are crucial for the successful operation of femtocells within cellular networks. By implementing robust synchronization techniques and addressing timing-related challenges, operators can ensure optimal femtocell performance and improve overall network efficiency. As femtocell technology advances, the development of more sophisticated synchronization solutions will further enhance the reliability and quality of service for indoor cellular coverage.
