LoRa Channels List: Frequency vs. Channel Number

lorawan
frequency
channel
rf
iot

LoRa operates across a variety of frequency bands, each carefully divided into channels that allow for organized and interference-free communication. Each channel is associated with a specific frequency and a channel number, both crucial for correctly configuring LoRa devices. This page provides a detailed list of LoRa channels, including a comparison of frequency vs. channel number, to help you select the optimal settings for your applications.

We’ll explore how LoRa channel frequencies impact communication range and data transmission within a LoRaWAN network. Keep in mind that different bands are defined for LoRaWAN networks in regions like the USA, EU, and China.

LoRa Channels in the 868 MHz Band

Table 1 lists the LoRa frequency channels in the 868 MHz band, which spans from 863 to 870 MHz. It shows the channel number and its corresponding channel frequency. All eight channels are separated by 0.3 MHz from their adjacent channels.

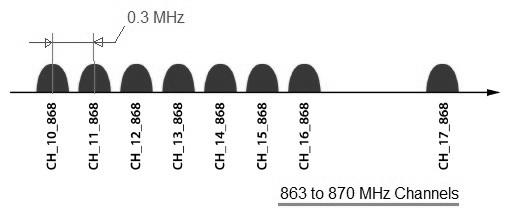

Lora channels 868 MHz Band

Table 1: 868 MHz band LoRa Channels

LoRa Channel NumberLoRa Frequency
CH_10_868865.20 MHz
CH_11_868865.50 MHz
CH_12_868865.80 MHz
CH_13_868866.10 MHz
CH_14_868866.40 MHz
CH_15_868866.70 MHz
CH_16_868867 MHz
CH_17_868868 MHz

LoRa Channels in the 900 MHz Band

Table 2 lists the LoRa channels in the 900 MHz band, which ranges from 902 to 928 MHz. It shows the channel number and its corresponding channel frequency. All thirteen channels are separated by 2.16 MHz from their adjacent channels.

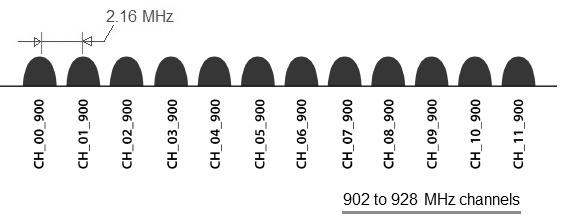

Lora channels 900 MHz Band

Table 2: 900 MHz band LoRa Channels

LoRa Channel NumberLoRa Frequency
CH_00_900903.08 MHz
CH_01_900905.24 MHz
CH_02_900907.40 MHz
CH_03_900909.56 MHz
CH_04_900911.72 MHz
CH_05_900913.88 MHz
CH_06_900916.04 MHz
CH_07_900918.20 MHz
CH_08_900920.36 MHz
CH_09_900922.52 MHz
CH_10_900924.68 MHz
CH_11_900926.84 MHz
CH_12_900915 MHz

Conclusion

Choosing the correct LoRa channel frequency and channel number is crucial for achieving the best possible communication performance. By having a clear understanding of the frequency bands and channel allocations, you can minimize interference, improve signal quality, and ensure compliance with regulations. This channel mapping provides a useful reference for configuring LoRa devices to meet the specific requirements of different regions and applications.
