This tutorial provides an overview of smart grids, including their basics, operations, technologies, and key companies involved in their development and deployment in both the USA and India.

The term “Grid” refers to a network of high-tension cables that distribute electrical power across a region, providing service to consumers.

What is a Smart Grid?

A smart grid is an electricity network that utilizes digital and other advanced technologies to manage and monitor the transport of electricity from sources to destinations. “Sources” refers to power generation sources, while “destinations” refers to end-users.

The primary goal of smart grids is to coordinate different parts of the system as efficiently as possible, encompassing grid operators, end-users, electricity stakeholders, and more.

smart grid communication

Smart Grid Operations

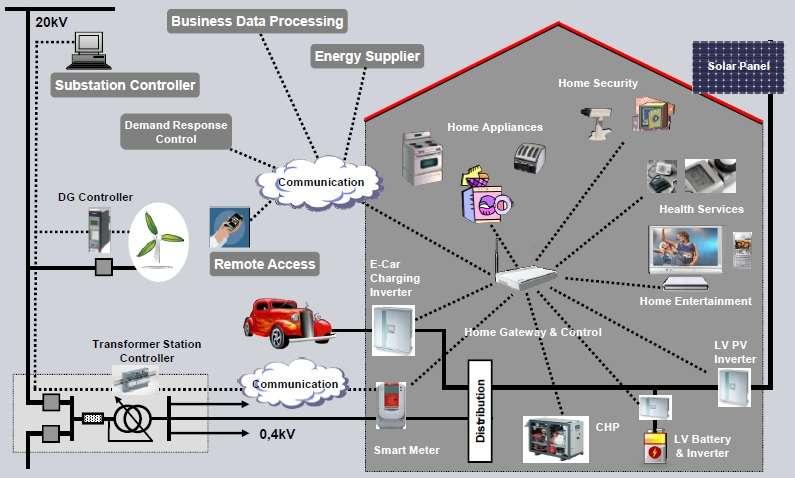

Figure 1 (not provided, see URL above) depicts smart communication-based applications within a smart grid. The hierarchy of operations is as follows:

  • Integrated Utility Business Operation: Encompasses asset management, data warehousing, and other essential business functions.
  • Added Value Network Management & Optimization: Includes applications and systems for network planning, meter data management, network information, and advanced applications such as EMS (Energy Management System), DMS (Distribution Management System), EBM (Energy Business Management), and trading platforms.
  • Network Control and Supervision: Involves single or multi-utility control systems, such as SCADA (Supervisory Control and Data Acquisition).
  • Communication: Private and public communication networks that enable data exchange and control.
  • Field Data Acquisition, Local Control, and Automation: Includes RTUs (Remote Terminal Units), meters, protection devices, and other field equipment.

Smart Grid Architecture

Smart Grid Architecture

The figure above depicts a typical smart grid architecture and its various components and modules.

Smart Grid Technologies

The following table outlines various key technologies employed in smart grids:

TechnologyHardwareSystems/Software
Wide Area Monitoring and controlPhasor measurement units, sensor equipmentsSCADA, WAMS(Wide Area Monitoring Systems), WAAPCA(Wide Area Adaptive Protection Control and Automation), WASA(Wide Area Situational Awareness)
Information and communication technology integrationCommunication equipments such as wimax, lte; routers, relays, gateways, switchesERP ( enterprise resource planning software) , CIS (Customer Information System)
Renewed and distributed generation integrationPower conditioning equipment for grid and for bulk powerEMS(Energy Management System), DMS(Distributed Management System)
Transmission enhancementSuperconductors, HVDC, FACTSNetwork stability analysis, automatic recovery systems
distribution grid managementAutomated re-closers, switches, capacitors, remote controlled distributed generation, wire and cable sensors, transformer sensorsGIS (Geographic Information System) , DMS, OMS (Outage Management System), WMS (Workforce Management System)
advanced metering infrastructureSmart meter, relays, servers, in-home displaysMDMS (Meter data management system)
electric vehicle charging infrastructureCharging infrastructure, batteries, invertersEnergy billing, smart grid to vehicle charging (G2V), discharging vehicle to grid (G2V) methodologies
customer side systemsSmart appliances, routers, smart thermostat, thermal accumulators, energy dashboards, energy applications for smart phones and tablets, energy management systems

Smart Grid Companies: USA

The following table lists leading smart grid companies in the USA:

Company Name
ABB
Cisco
IBM
Itron
Siemens
S&C
Schneider Electric
Opower
Silver Springs Networks
Tendril

Smart Grid Companies: INDIA

Many of the companies listed for the USA (ABB, Cisco, SIEMENS, Schneider Electric, and IBM) also operate in India. The following table lists additional prominent smart grid companies in India:

Company Name
CapGemini
HCL Infosystems
New Delhi Power Ltd
General Electric
Power Grid
Telvent
Larsen & Toubro
Echelon Corporation
Infosys
Accenture
e-Meter
Ecolibrium Energy
KEMA
TriDium
Mahindra Satyam
Landys+Gyr
POSOCO (Power System Operation Corporation Limited) subsidiary of Power Grid Corporation
Kalkitech
Cyan Holding Plc.
