RF Low Noise Amplifier (LNA) in Satellite Communication
Advertisement
The RF Low Noise Amplifier (LNA) is a critical component in satellite communication systems, designed to amplify weak incoming signals while minimizing noise. LNAs ensure signal integrity and enhance the performance of satellite receivers, making them indispensable in space communication technology.
This guide explores the role of RF LNAs in satellite communication, their applications, key advantages, and some of the top manufacturers in the industry.
What is an LNA?
An LNA is a critical component in satellite communications systems. Its primary function is to amplify weak signals received by the satellite’s antenna with minimal addition of noise. LNAs are employed at the front end of the receiver chain to improve the overall signal-to-noise ratio (SNR) and enhance the sensitivity of the communication system.
Here are the key features and roles of Low Noise Amplifiers in satellite communications:
- Amplification: The signals received from space are often very faint, and the LNA helps boost their strength for further processing.
- Low Noise Figure: It has the ability to add minimal additional noise to the signal during the amplification process.
- Signal-to-Noise Ratio (SNR) improvement: By minimizing the added noise, LNAs enhance the overall SNR of the received signal.
- Frequency selectivity: It is designed to operate in specific bands and hence can amplify only the desired frequency range.
- Interference rejection: It is designed to reject or mitigate interference from other sources such as terrestrial signals or electronic noise which could affect the quality of satellite communication.
RF LNA Connections

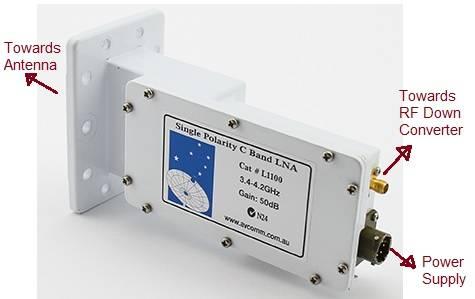

The figure depicts a C-Band RF LNA from AnaCom, Inc. This is a module that can be directly connected into a system which houses the LNA IC on the PCB. As shown, it is connected between the RF Antenna and the RF down converter. A -48V power supply is required for its operation.
Technical Specifications of an LNA
Following are the technical specifications or features to be considered for selection of an LNA.
- LNA Gain: It is a measure of how much the LNA amplifies the incoming signal strength. In simple terms, gain represents the ratio of the output signal amplitude to the input signal amplitude. It is typically expressed in decibels (dB).
Where: = Gain in decibels. = Power of the output signal = Power of the input signal
The other specifications are as follows:
- Frequency range (For example: 3.7 to 4.2 GHz)
- Gain stability (For example: < +/-0.5 dB per day)
- Gain response (For example: 2 dB over 500 MHz range)
- Dynamic range (For example: 50 dB)
- Noise Temperature (For example: 70 °K) or Noise Figure (For example: -6.16 dB)
- Intermodulation distortion (For example: Better than 50 dBc with two equal carriers of -68 dBm at 1 MHz apart)
- Input/Output VSWR (For example: 1.25:1)
RF LNA Applications
Following are some common applications of RF LNAs.
- They are integral components of wireless systems including wifi, cellular, bluetooth and other standards.
- LNAs are used to amplify the received signals before further processing in satellite communication receivers.
- Radar systems use RF LNAs to amplify weak radar return signals.
- RF LNAs are used in broadcasting systems, including television and radio transmission.
- Other applications: Aerospace, defense, medical imaging, radio telescopes, test and measurement equipments, wireless sensors and IoT devices, navigation systems, remote sensing etc.
Advantages of RF LNA
Following are some key benefits of using an LNA in satellite communication:
- It amplifies weak signals received from long transmission distances by the antenna. It improves overall signal strength.
- It enhances the sensitivity of the satellite system by amplifying weak signals with minimal added noise.
- It improves SNR by minimizing the addition of noise during the amplification process.
- It helps to extend the communication range covered by satellite communication systems due to amplification.
- It is designed to operate within specific bands which provides frequency selectivity.
- LNAs help to compensate free space path loss and atmospheric attenuation.
- It has the ability to operate effectively in challenging and noisy environments.
- It can work seamlessly with the down link chain.
Low Noise Amplifier IC Manufacturers
The following table mentions popular low noise amplifier IC manufacturers.
Manufacturers with description | Description |
---|---|
Analog Devices (ADI) | Low noise amplifiers from ADI available for frequency range from IF to RF/Microwave and in W-Band (i.e. 95 GHz). Refer analog.com |
Texas Instruments (TI) | PGA5807A: 8 Channel analog front end (AFE) with LNA, PGA and LPF. Other ICs: AFE5804, AFE5805 and so on. Refer ti.com for more LNA ICs and their features. |
Maxim Integrated | MAX2659, MAX2670, MAX2084 and so on. Refer maximintegrated.com for features of these front end ICs. |
Skyworks Solutions | The company manufactures Ultra Low Noise Amplifiers (LNAs) for LTE, WiMAX and WCDMA applications. Refer www.skyworksinc.com |
NXP Semiconductors | MML25231HT1 (1000-4000 MHz, 15.2 dB, 23dBm P1dB LNA), LNAs for LTE/4G, BGU7258 (5GHz to 6 GHz ISM band LNA) etc. Refer nxp.com |
Infineon Technologies | Low Noise Amplifiers (LNA) ICs are available for GNSS, 4G/5G and multi-purpose applications. infineon.com |
Qorvo | LNAs for noise figure less than 3 dB and other features. Examples: TQL9063, TQP3M9037 etc. Refer qorvo.com |
Mini-Circuits | For MMIC LNAs, Coaxial LNAs and others, Refer minicircuits.com |
MACOM Technology Solutions | Low noise amplifier (LNA) MMICs which cover frequencies from DC to 110 GHz operation. Refer macom.com |
Microchip Technology | MMA026AA (DC to 30 GHz) LNA, MMA044AA LNA (6 to 18 GHz) and more. Visit microchip.com for more information. |
Conclusion
In summary, Low Noise Amplifiers play a crucial role in satellite communications by amplifying weak signals with minimal noise addition. This is essential for maintaining signal integrity, maximizing the sensitivity of the receiver and improving the overall performance of satellite communication systems. Their applications span across various industries, from telecommunications to weather forecasting.
