Both Temperature Compensated Crystal Oscillators (TCXOs) and Voltage-Controlled Temperature Compensated Crystal Oscillators (VC-TCXOs) are designed to combat frequency variations caused by temperature changes. They employ temperature compensation techniques to maintain a stable output frequency across a defined temperature range. This makes them a preferred choice over other crystal oscillator types.

TCXOs and VC-TCXOs find use in a variety of applications, including:

  • Base Stations
  • GPS/GNSS Receivers
  • Industrial Instrumentation
  • Wireless Systems
  • Test and Measurement Instruments

TCXO

A TCXO is designed to operate reliably even with significant ambient temperature fluctuations. It incorporates a built-in thermistor that continuously monitors the surrounding temperature and adjusts the oscillator’s behavior accordingly.

For example, the ASTX-H11 manufactured by Abracon is a typical TCXO. Here are some of its specifications:

  • Frequency Stability: +/- 2.5 ppm (Parts Per Million)
  • Operating Temperature: -30°C to +75°C
  • Supply Voltage: 3.3 V
  • Frequency Range: 2.5 MHz to 55 MHz
  • Aging: +/- 1 ppm per year
  • Output: HCMOS
  • For more information, visit abracon.com.

Common features to look for in a TCXO include:

  • Ultra-low phase noise
  • Compact size
  • Excellent temperature stability
  • Low power consumption
  • RoHS compliance

These are important considerations when selecting a TCXO from a manufacturer.

VC-TCXO

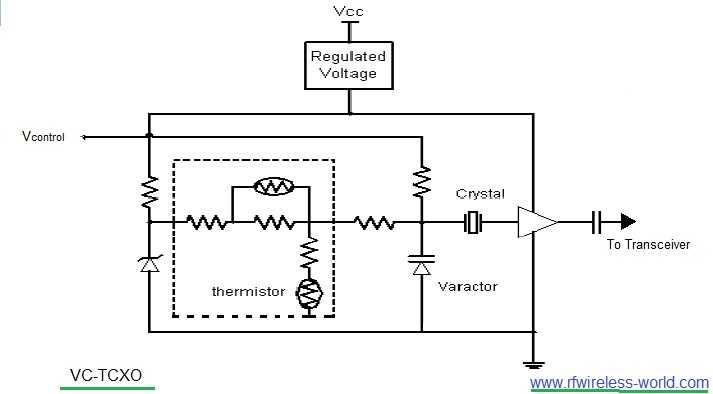

VC-TCXO

VC-TCXO modules utilize analog techniques to correct frequency deviations.

However, VC-TCXOs do have some drawbacks:

  • Higher price
  • Larger footprint
  • Requirement for external components in the circuit

An example of a VC-TCXO is the SiT5356 manufactured by SiTime. Its specifications include:

  • Frequency Stability: +/- 0.1 ppm (initial), +/- 2.5 ppm (over temperature)
  • Stability across temperature: +/- 100 ppb
  • Supply Voltage: 2.5 V, 2.8 V, 3.0 V, 3.3 V
  • Frequency Range: 1 MHz to 60 MHz in 1 Hz steps
  • Control Voltage Range: 10% of Vdd to 90% of Vdd
  • Output Type: LVCMOS or clipped sinewave output
  • For more information, visit sitime.com.

Typical features of a VC-TCXO include:

  • Integrated low-noise frequency synthesizer
  • Wide pull range for voltage control
  • Excellent temperature stability
  • Low power consumption
  • Programmable features for customization
  • High shock and vibration resistance

Difference between TCXO and VCTCXO

The following table provides a direct comparison of TCXO and VC-TCXO characteristics:

ParameterTCXOVC-TCXO
Full FormTemperature Compensated Crystal OscillatorVoltage-Controlled Temperature Compensated Crystal Oscillator
Temperature stabilityTypically stable over a temperature range, but not adjustableAdjustability for temperature compensation
Voltage controlNot supportedSupported
Frequency adjustmentNot supported, typically fixed frequencyFrequency adjustment possible by varying voltage
ComplexitySimple designMore complex due to addition of voltage control circuitry
Power consumptionTypically lower power consumptionMay have higher power consumption due to additional voltage control circuits
Size and form factorOften compact, available in smaller packagesMay be slightly larger
Frequency pulling and pushingLess susceptible to voltage induced frequency changesSusceptible to frequency changes with variations in control voltage, can be managed using careful design
CostOften lower cost compared to VC-TCXOTypically higher cost due to additional features
ApplicationsCommonly used where temperature stability is desiredSuitable where fine tuning of frequency is required

In conclusion, the decision between TCXO and VC-TCXO hinges on the specific needs of the application, taking into account the necessity for frequency adjustment, temperature stability requirements, and budgetary constraints.
