A step recovery diode (SRD), also known as a snap-off diode or charge-storage diode, is a semiconductor device characterized by its ability to generate short-duration pulses with fast rise times. The term “step recovery” originates from the diode’s rapid transition from a conducting to a non-conducting state, resulting in a sharp change in the output waveform.

Step Recovery Diode Working Principle

The operation of a step recovery diode relies on the charge storage and release mechanism. Here’s a breakdown:

  • When forward-biased, the SRD accumulates charge carriers in a heavily doped region.
  • Upon sudden reverse-biasing, the stored charge is rapidly released, causing a fast change in the depletion layer’s capacitance.
  • This sudden change in capacitance results in a rapid voltage step, leading to the generation of short-duration pulses.

Step Recovery Diode Applications

Step Recovery Diodes find applications in various fields, including:

  • Pulse Generators: Used for short-duration pulse generation in signal generators and radar systems.
  • Comb Generators: Generate a wide spectrum of frequencies.
  • Frequency Multipliers: Their rapid switching capabilities make them effective in frequency multiplier circuits. SRDs are effective in generating harmonics of an input signal.
  • Signal Mixing and Frequency Conversion: The harmonics generation capabilities allows its usage in these applications.
  • UWB (Ultra Wide Band) Communications: Used where precise timing and rapid transitions are required.

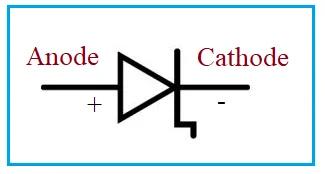

Step recovery diode

Step Recovery Diode (SRD) Advantages

The benefits of using Step Recovery Diodes (SRDs) include:

  • Short, High-Frequency Pulses: They can generate short duration, high-frequency pulses with extremely fast rise times.
  • Frequency Multiplication: They provide rapid switching capability, allowing them to multiply the input frequency.
  • Harmonic Generation: Due to their nonlinear characteristics, higher harmonic frequencies can be generated.
  • Compact Size: They are typically compact in size, making them suitable for space-constrained designs and circuits.
  • Cost-Effectiveness: They are very cost-effective.

In summary, step recovery diodes are semiconductor devices with unique characteristics that make them valuable in pulse generation, frequency multiplication, and harmonic generation applications. Their ability to produce short-duration pulses with fast rise times makes them suitable for various high-frequency and microwave applications in electronics and communication systems.
