SAW vs BAW Filters: Understanding the Key Differences

rf filter
saw filter
baw filter
acoustic wave
frequency

Introduction

SAW (Surface Acoustic Wave) and BAW (Bulk Acoustic Wave) filters are both essential components in RF (Radio Frequency) systems, but they differ significantly in their working principles and applications. This guide will compare their functionality and key features.

Filters, in general, are crucial modules in the transmit and receive chain of a communication system. They are 2-port devices with input and output ports designed for specific frequency bands of interest as per application requirements. RF Filters selectively pass RF signals within a certain frequency range while attenuating signals outside that range.

Two common types of RF filters are SAW and BAW filters. SAW stands for Surface Acoustic Wave, and BAW stands for Bulk Acoustic Wave.

BPF

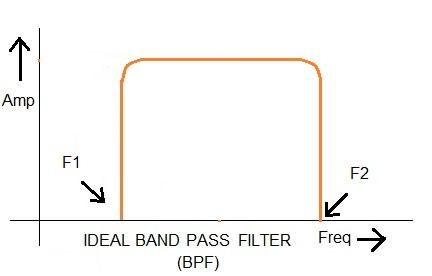

There are various types of filters based on their frequency response, including Band Pass Filters (BPF), Band Stop Filters (BSF), Low Pass Filters (LPF), and High Pass Filters (HPF). The figure above depicts the response of a Band Pass Filter (BPF).

The following specifications are typically considered for RF filter characterization:

  • Insertion loss
  • Bandwidth of operation
  • Rejection

What is a SAW (Surface Acoustic Wave) Filter?

A Surface Acoustic Wave (SAW) filter is a type of electronic filter that utilizes surface acoustic waves to filter signals in RF systems. These waves travel along the surface of a piezoelectric material, such as quartz or lithium niobate, where electrodes generate and detect the acoustic signals.

Key Features of SAW Filters

  • Operating Principle: Converts electrical signals into mechanical (acoustic) waves and back into electrical signals.
  • Frequency Range: Typically operates up to 2-3 GHz.
  • Compact Size: Features a smaller footprint, making it suitable for portable devices.
  • Cost: More affordable due to simpler manufacturing processes.
  • Applications: Commonly found in mobile phones, GPS systems, and RF modules in IoT devices.

Advantages of SAW Filters

  1. Compact and lightweight
  2. Low cost for low-frequency applications
  3. High selectivity and efficiency at lower frequencies

Limitations of SAW Filters

  1. Limited performance at higher frequencies (above 3 GHz)
  2. Reduced stability under high-temperature conditions

What is a BAW (Bulk Acoustic Wave) Filter?

A Bulk Acoustic Wave (BAW) filter utilizes bulk acoustic waves that travel through the entire volume of the piezoelectric material. BAW filters operate at higher frequencies and are known for their exceptional performance and thermal stability.

Key Features of BAW Filters

  • Operating Principle: Generates acoustic waves that propagate through the bulk of the piezoelectric material.
  • Frequency Range: Works well in high-frequency ranges, typically above 3 GHz (up to 6 GHz or higher).
  • Performance: Offers better temperature stability and lower insertion loss at high frequencies.
  • Applications: Commonly used in 5G networks, WiFi systems (especially Wi-Fi 6/6E), and high-frequency communication modules.

Advantages of BAW Filters

  1. Superior performance at high frequencies
  2. Better thermal stability, making them reliable in extreme environments
  3. Low signal loss and high selectivity

Limitations of BAW Filters

  1. Higher cost due to complex manufacturing processes
  2. Larger size compared to SAW filters

Difference Between SAW Filter and BAW Filter

AspectSAW FilterBAW Filter
Full FormSurface Acoustic Wave FilterBulk Acoustic Wave Filter
Working PrincipleUtilizes surface acoustic waves traveling along the surface of a piezoelectric material.Relies on bulk acoustic waves traveling through the entire material volume.
Frequency RangeTypically used for frequencies up to 2-3 GHz.Suitable for higher frequencies, up to 6 GHz and beyond.
SizeSmaller and compact in design.Larger compared to SAW filters for the same application.
PerformanceLower insertion loss at lower frequencies.Superior performance at higher frequencies with better temperature stability.
MaterialUses piezoelectric materials like quartz or lithium niobate.Typically uses piezoelectric materials like aluminum nitride or quartz.
Temperature StabilityLess stable at higher temperatures.Offers better temperature stability and reliability.
CostMore affordable and widely available.Higher cost due to more complex manufacturing processes.
ApplicationsCommon in mobile phones, GPS systems, and RF modules for low-frequency use.Preferred for 5G, Wi-Fi, and high-frequency communication systems.

Conclusion

SAW filters are ideal for low frequency, cost-sensitive applications, while BAW filters excel in high-frequency environments requiring better temperature stability and performance. Understanding these differences ensures optimal RF system design.
