An RF transceiver integrates both transmission and reception functionalities into a single unit, facilitating efficient wireless communication. These devices are fundamental to various systems, including Wi-Fi, LTE, and Bluetooth. In this guide, we will explore the features, design considerations, and diverse applications of RF transceivers across various industries.

Definition

“Transceiver” is the term used for a device that houses both a transmitter and a receiver in a single module. Such a device, which transmits and receives Radio Frequency (RF) signals, is called an RF Transceiver.

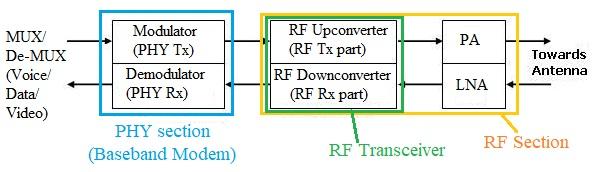

Mostly, an RF Transceiver is positioned between the Baseband MODEM and the PA/LNA in a wireless communication system. PA stands for Power Amplifier, and LNA stands for Low Noise Amplifier. The Baseband Modem houses chipsets for various analog/digital modulation techniques and ADC/DAC chips.

rf transceiver

Applications

RF Transceivers are essential whenever wireless communication is involved. Their primary application lies in making information, such as voice, data, or video, suitable for transmission over a wireless medium.

Specifically, an RF Transceiver is used to convert Intermediate Frequency (IF) signals to RF frequencies and vice versa. It is commonly used in:

  • Satellite communication
  • Radio transmission and reception
  • Television signal transmission and reception
  • WiMAX/WLAN/Zigbee/LTE networks

Design

RF Transceivers are typically constructed from RF mixers, amplifiers, pads, and other RF components using microstrip technology. The transmitter portion is often referred to as an RF Up-converter, while the receiver portion is called an RF Down-converter.

To understand RF transceiver basics, it’s helpful to delve into the design aspects of RF frequency converters.

RF Transceiver Technical Specifications

There are numerous parameters associated with RF Transceivers. We’ll discuss a few of the key ones:

  • Transmitter Part: Input and output frequency range, conversion gain, gain flatness, gain adjustment, spurious and harmonics output, 1dB compression point, frequency stability.

  • Receiver Part: Input and output frequency range, conversion gain, gain flatness, gain adjustment, noise figure, spurious output, Image rejection, frequency stability, adjacent and non-adjacent channel rejection.

For more details, you can explore more RF related terms.

Conclusion

RF transceivers are at the core of modern wireless communication, enabling seamless signal transmission and reception. A thorough understanding of their design and features is critical for continued advancements in connectivity technologies.
