This page explores the advantages and disadvantages of the full bridge DC-DC converter, including its circuit diagram and operational principles.

What is a Full Bridge Converter?

About DC to DC Converters

A DC-DC converter is an electronic circuit that modifies one DC voltage level to another. Essentially, it acts as a voltage regulator, utilizing switches, inductors, and capacitors to efficiently convert power. These converters are vital in a wide range of applications.

DC-DC converters are categorized based on whether they provide isolation between the input and output circuits:

  • Isolated DC-DC Converters: Provide electrical isolation. Examples include:
    • Fly-back
    • Forward
    • Half Bridge
    • Full Bridge
    • Push-Pull
  • Non-Isolated DC-DC Converters: Do not provide electrical isolation.

Full Bridge Converter Circuit and Operation

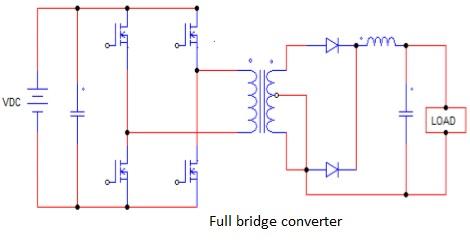

Full bridge converter

The figure above illustrates a typical full bridge converter circuit. This type of converter is known for its efficiency and can be adapted as a zero voltage switching (ZVS) phase-shift converter. In this configuration, each side of the bridge is driven by a square wave, and the relative phase shift between these square waves is adjusted to control the amount of power transferred.

The full bridge converter is a popular DC-DC chopper choice due to its:

  • Low circulating reactive energy
  • Moderate device stresses
  • ZVS operation
  • High efficiency
  • High switching frequency

By connecting a DC blocking capacitor and a storage inductor in series with the primary winding, the current on the primary side can be reduced to zero during the freewheeling interval.

Advantages of Full Bridge Converter

Here are the primary benefits of using a full bridge converter:

  • High Voltage Applications: Well-suited for applications requiring high voltage levels.
  • Reduced Voltage Ripple: Offers slightly less voltage ripple compared to a half-bridge converter.
  • Full Wave Utilization: Employs four diodes to effectively change the polarity of the entire waveform, rather than just clipping off half of it.

Disadvantages of Full Bridge Converter

Here are the main drawbacks of using a full bridge converter:

  • Lower Efficiency: Typically has a lower efficiency (around 95%) compared to a half-bridge converter (around 99%).
  • Increased Complexity: Contains an additional segment to connect the ground point to the load, making it more complex than a half-bridge converter.
  • Higher Losses and Noise: The presence of more switching elements can result in increased losses and noise compared to a half-bridge design.

Conclusion

Understanding the fundamentals of full bridge converters is essential to appreciating their advantages and disadvantages.
