Dielectric Resonator Oscillator (DRO): A Comprehensive Overview

An electronic oscillator that uses a Dielectric Resonator as the frequency-determining element is known as a Dielectric Resonator Oscillator (DRO).

An oscillator, in general, is a circuit designed to produce a repeating waveform, typically a sine wave, at a specific frequency. In a DRO, the dielectric resonator is key to setting and stabilizing the oscillator’s frequency. DROs are known for delivering signals with a high Q factor (a measure of resonator quality) and low phase noise, which is crucial for signal clarity.

The precise frequency of a DRO depends on the properties of the dielectric material used, its physical shape (like square or plate), and its dielectric constant. Resonators, in general, are used to define the frequency at which oscillation or resonance occurs.

Resonators find applications in RF (Radio Frequency) and microwave components such as oscillators and amplifiers. Examples of different resonator types include:

• Coaxial resonator
• Crystal resonator
• Dielectric resonator
• Ceramic resonator
• YIG (Yttrium Iron Garnet) resonator
• SAW (Surface Acoustic Wave) resonator

Dielectric resonators are particularly well-suited for microwave frequencies. This makes them a preferred choice over other resonator types in oscillator designs for these frequencies.

In terms of construction, a dielectric resonator is made from a ceramic or crystalline material with a high dielectric constant. It’s precisely shaped to resonate at a specific frequency. The resonator is placed close to the active device (like a transistor) within the oscillator circuit. Its resonance characteristics play a significant role in defining the output frequency of the oscillator.

Dielectric Resonator Oscillator Working

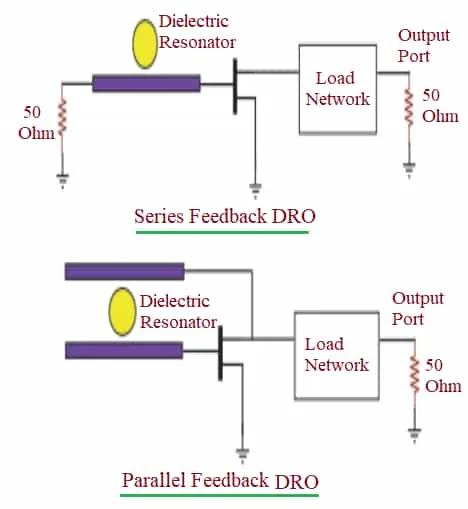

There are two main approaches to designing a DRO: series and parallel configurations, as illustrated in the figure below.

• Series DRO: The dielectric resonator is placed in series with the active device.
• Parallel DRO: The dielectric resonator is placed in parallel with the active device (e.g., a transistor or negative resistance circuit).

A biasing circuit is always necessary for the operation of any microwave oscillator, including DROs.

The active device in a DRO is often a FET (Field Effect Transistor) or another type of semiconductor. This device amplifies and sustains the oscillations generated by the resonator.

The DRO incorporates a feedback network, which takes a portion of the output signal and feeds it back to the input, reinforcing the oscillations. The dielectric resonator’s resonant properties contribute to the stability and precision of the generated frequency.

Some DRO designs include tuning elements, allowing for adjustment of the output frequency. This is important in applications that require fine-tuning or frequency agility.

In many DROs, the resonant frequency can be adjusted by applying a control voltage (Vc) to the dielectric resonator. This control voltage alters the effective dielectric constant of the resonator, which in turn shifts the resonant frequency. This is a valuable feature for frequency tuning.

Dielectric Resonator Oscillator Applications

Dielectric Resonator Oscillators (DROs) are commonly used in various applications, especially in the microwave and millimeter-wave frequency ranges, where stability, low phase noise, and precise frequency control are essential. Common applications include:

• Radar Systems: Radar systems often require accurate and stable frequencies for target detection and tracking, making DROs a good fit.
• Communication Systems: Due to their low phase noise and stability, DROs are used in communication systems like satellite transponders, microwave links, and point-to-point communication systems.
• Satellite Communication: DROs are used to generate stable carrier frequency signals for both uplink and downlink communication.
• Test and Measurement Instruments: DROs are found in instruments like spectrum analyzers and network analyzers, where precise and stable frequency sources are necessary.
• Frequency Synthesizers: DROs can be integrated into frequency synthesizers to produce stable and tunable output frequencies.
• Local Oscillators: DROs serve as local oscillators for frequency conversion and modulation/demodulation processes.

10 Advantages of Dielectric Resonator Oscillator (DRO)

Here are the key benefits of using a Dielectric Resonator Oscillator:

1. Excellent Frequency Stability: DROs offer excellent frequency stability over time and temperature variations.
2. Low Phase Noise: They are known for their low phase noise characteristics, leading to cleaner signals.
3. High Q Factor: Dielectric resonators typically have a high Q factor, meaning they store energy efficiently.
4. Low Power Consumption: DROs can be designed to operate with relatively low power consumption, which is advantageous for battery-powered devices.
5. Compact Size: Dielectric resonators are often small, making them suitable for compact designs in microwave and millimeter-wave systems.
6. Good Temperature Stability: They exhibit good temperature stability, ensuring reliable performance even with temperature fluctuations.
7. Frequency Agility: While known for stability, DROs can also be designed to be frequency agile, allowing for rapid and precise frequency tuning.
8. Relatively Straightforward Construction: The construction of DROs can be relatively straightforward, leading to cost-effective manufacturing and maintenance.
9. Robustness: Dielectric resonators are generally robust and can withstand mechanical vibrations and shocks better than some other oscillator types.
10. Integration with Planar Technologies: DROs can be integrated with planar technologies, making them compatible with microwave integrated circuits (MICs) and other planar circuit designs.

Disadvantages of Dielectric Resonator Oscillator

Here are some drawbacks to consider when using a Dielectric Resonator Oscillator:

1. Limited Tuning Range: The tuning range of DROs can be limited compared to other oscillator types.
2. Size Considerations: Though compact, DROs may still be larger than some alternative oscillators, which can limit their use in highly miniaturized devices.
3. Complex Control Circuits: Achieving precise control and tuning of a DRO may require complex control circuits, especially for wider tuning ranges.
4. Frequency Pushing and Pulling Effects: DROs may exhibit frequency pushing and pulling effects due to variations in load conditions and environmental factors. Careful design is needed to minimize these effects.
5. Limited Power Output: The power output of DROs may be limited compared to some high-power oscillator types, making them less suitable for certain high-power applications.

Conclusion

It’s important to recognize that while DROs are effective in specific frequency ranges and applications, other types of oscillators, such as voltage-controlled oscillators (VCOs) or quartz crystal oscillators, may be more appropriate in different scenarios. The optimal choice of oscillator depends on the particular requirements of the application.
