Condenser Microphone: Advantages and Disadvantages

condenser microphone
microphone
audio
audio equipment
transducer

This page explores the advantages and disadvantages of condenser microphones, including their working principle, benefits, and drawbacks when compared to other microphone types.

What is a Condenser Microphone (or Capacitor Microphone)?

Introduction:

A condenser microphone, also known as a capacitor microphone, is a type of microphone that utilizes a capacitor to convert sound into an electrical signal. It consists of two thin plates – one fixed and the other flexible (the diaphragm) – forming a capacitor. An equal and opposite charge is applied to these plates.

The flexible diaphragm responds to sound pressure, causing the capacitance between the plates to change. This change in capacitance is then used to generate an electrical signal.

The working principle can be explained by the following equation:

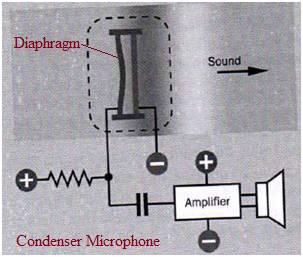

Condenser microphone

  • Q = C x V OR V = Q/C

Where:

  • Q = Electrical charge
  • C = Capacitance (ability of the capacitor to store charge)
  • V = Voltage

If the charge on the plates is kept constant while the capacitance changes due to sound pressure, the voltage across the capacitor will also change accordingly. This voltage fluctuation is then amplified before being sent to a speaker or recording device.

Benefits (Advantages) of Condenser Microphones

Here are the key advantages of using a condenser microphone:

  • Smaller Size: Condenser mics are generally more compact than dynamic microphones.
  • Flat Frequency Response: They offer a relatively flat frequency response, accurately capturing a wide range of frequencies.
  • Lightweight: Due to the lighter diaphragm assembly, condenser mics are lighter compared to dynamic microphones.
  • High-Frequency Range: The fast-moving diaphragm allows them to support a high range of frequencies.
  • High Sensitivity: Condenser mics are highly sensitive and are well-suited for capturing subtle sounds from audio instruments and vocals.

Drawbacks (Disadvantages) of Condenser Microphones

Here are the drawbacks of using a condenser microphone:

  • Requires Power: They need a voltage source (power) to operate, often in the form of phantom power.
  • Limited Input Level: Condenser mics can only handle a certain maximum input signal level. Exceeding this limit can cause distortion.
  • More Complex: They are more complex in design compared to dynamic microphones.
  • Environmental Sensitivity: They are more susceptible to extreme temperature and humidity conditions compared to dynamic microphones.
  • Higher Cost: Condenser mics are generally more expensive than dynamic microphones.
  • Potential Noise: Cheaper condenser microphones can sometimes generate a small amount of noise.

Conclusion

Based on the advantages and disadvantages outlined above, condenser microphones offer superior performance in many applications when compared to dynamic microphones, despite their drawbacks. Their sensitivity and frequency response make them a valuable tool for recording and sound reinforcement.
