Coaxial to Waveguide Adapters: Types, Applications, and Benefits

Coaxial to waveguide adapters are essential components in RF systems, enabling a smooth transition between coaxial cables and waveguides. They are widely used in communication, radar, and testing applications where efficient signal transfer and impedance matching are critical. This article delves into their types, working principles, benefits, and key applications, offering insights into their importance in modern RF systems.

What is a Coaxial to Waveguide Adapter?

An adapter used to interface a coaxial cable with a waveguide is referred to as a coaxial to waveguide adapter. Rectangular waveguides are fed by means of a coaxial probe pierced into the wall of the waveguide. The coaxial probe is connected to a source of EM waves.

To generate the TE10 mode, the probe is inserted perpendicular or parallel to the maximum E-field. The probe depth (d) in the waveguide is kept small so that a constant current on the probe will radiate an EM field inside the waveguide structure.

The probe diameter is also kept small to avoid the generation of higher-order modes.

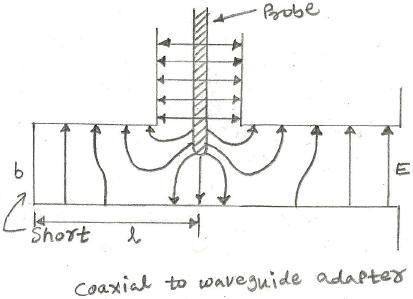

As shown in the figure, E-fields are perpendicular in both the coaxial cable and waveguide structure. To have radiation only in one direction, a short circuit is placed at a distance (‘l’) equal to a quarter wavelength in the backward direction. As shown in the figure, both ‘d’ and ‘l’ are chosen such that the input impedance of the probe can be made purely resistive, equal to the characteristic impedance of the coaxial line.

Types of Coaxial to Waveguide Adapters

1. Straight Adapters:

   • Connect coaxial cables directly to waveguides.
   • Offer minimal signal deviation.
   • Commonly used for straightforward connections in laboratory and testing setups.

2. Right Angle Adapters:

   • Feature a 90-degree connection angle for applications with spatial constraints.
   • Ideal for compact setups requiring flexible connections.

3. Custom Tuned Adapters:

   • Designed for specific frequency ranges and applications.
   • Provide optimized performance for unique system requirements.

4. Double Ridge Adapters:

   • Allow for broader bandwidth support compared to standard single-ridge designs.
   • Suitable for systems requiring wide frequency coverage.

Benefits of Coaxial to Waveguide Adapters

1. Enable a seamless transition of signals from coaxial to waveguide formats, ensuring minimal loss.
2. Maintain system impedance compatibility, reducing reflection and enhancing signal quality.
3. Support diverse frequency bands, making them versatile for numerous RF and microwave applications.
4. Provide an efficient solution for connecting different transmission mediums without consuming excessive space.
5. Built from robust materials to withstand high-frequency operation and environmental challenges.

Conclusion

Coaxial to waveguide adapters bridge the gap between two vital transmission mediums, ensuring efficient signal transfer and system compatibility. Their versatility and precision make them indispensable in various RF and microwave applications. By understanding their working principles and types, you can choose the right adapter for your specific needs and achieve optimal system performance.
