What are Buck-Boost Converters?

Introduction:

A buck-boost converter is a type of DC-to-DC converter whose output voltage can be either greater or less than the magnitude of the input voltage. There are two main topologies: inverting and non-inverting.

  • Inverting: The output voltage polarity is opposite to the input polarity.
  • Non-Inverting: The output voltage polarity is the same as the input polarity.

These converters are often used as switching regulators. They employ a switching element (typically one or two MOSFETs) and an energy storage device (like an inductor) to efficiently regulate the input voltage to a lower or higher output voltage.

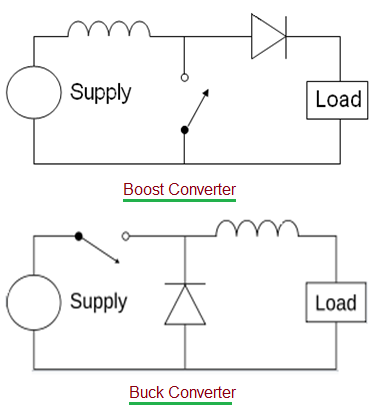

Buck Boost Converter Circuits

Image Credit: Wikipedia

  • A buck converter is also known as a step-down converter. It reduces the voltage (while increasing the current) from its input (supply voltage) to its output load.
  • A boost converter is also known as a step-up converter. It increases the voltage (while decreasing the current) from its input (supply voltage) to its output load.

Benefits or Advantages of Buck-Boost Converters

Here are some of the benefits of using buck-boost converters:

  • Efficient Solution with Small Components: Buck converters offer a highly efficient solution while requiring minimal external components.
  • Step-Up or Step-Down: They can both step-up and step-down voltage using a minimal number of components, making them versatile.
  • Lower Operating Duty Cycle: Buck-boost converters generally require a lower operating duty cycle.
  • High Efficiency: They offer high efficiency across a wide range of input and output voltages.
  • Cost-Effective: They are relatively inexpensive compared to many other types of converters.

Drawbacks or Disadvantages of Buck-Boost Converters

Here are some of the drawbacks associated with buck-boost converters:

  • Discontinuous Current: The input current and charging current of the output capacitor are discontinuous. This can lead to the need for larger filters and more EMI (Electromagnetic Interference) issues.
  • Inverted Output: The output voltage is inverted (for inverting topologies), which complicates sensing and feedback circuit design. Since the sensed voltage is negative, an inverting op-amp is typically needed for feedback and closed-loop control.
  • Limited High Gain: Achieving high gain can be challenging as the efficiency tends to decrease at very small or large duty cycles.
  • No Isolation: There is no isolation between the input and output sides, which can be a critical requirement in certain applications.
  • Control Complexity: The transfer function of the converter contains a right-half plane zero, which introduces control complexity and makes the converter more difficult to control.
