Active vs. Passive Energy Harvesting Circuits: A Comparison

energy harvesting
passive circuit
active circuit
power management
rf energy

Energy harvesting circuits are designed to capture and convert ambient energy from sources like light, vibration, thermal gradients, or RF waves into usable electrical power. These circuits are often used to power low-power devices, such as sensors, microcontrollers, and small wireless devices, without relying on traditional power sources like batteries.

Energy harvesting circuits can be classified into two main types: Active Energy Harvesting Circuits and Passive Energy Harvesting Circuits. This article will explore the differences between these two types, including their advantages and disadvantages.

Active Energy Harvesting Circuits

Active energy harvesting circuits utilize additional electronic components, such as transistors, operational amplifiers (op-amps), and power management circuits, to optimize the harvesting and conversion process. These circuits actively manage the input energy, adjusting the operating parameters to maximize power extraction and ensure efficient energy conversion. Active circuits usually include components such as rectifiers, DC-DC converters, regulators, and microcontrollers for real-time power management and optimization.

Active energy harvesting circuits are commonly used in applications where the energy source is variable, such as solar panels, vibration-based harvesters, and RF energy scavenging systems. They are suitable for scenarios requiring high efficiency and precise energy management.

How Active Energy Harvesting Works

Active circuits employ techniques like Maximum Power Point Tracking (MPPT), which dynamically adjusts the load impedance or voltage to match the source’s maximum power point. This maximization helps extract the highest possible energy from sources with varying conditions, such as solar panels under changing light intensity.

Advantages of Active Energy Harvesting

Here are the benefits of Active Energy Harvesting:

  1. Higher efficiency and power output compared to passive circuits.
  2. Can adapt to varying environmental conditions and optimize energy extraction.
  3. Capability to support a wide range of energy sources and loads.
  4. Provides regulated and stable output for powering electronic devices.

Disadvantages of Active Energy Harvesting

Here are the drawbacks of active energy harvesting:

  1. More complex design and higher cost due to additional electronic components.
  2. Requires power for the active components, which may reduce overall efficiency.
  3. Increased size and complexity.

Passive Energy Harvesting Circuits

Passive energy harvesting circuits use basic passive components such as diodes, capacitors, inductors, and resistors to convert and store energy without active control or power management. These circuits rely solely on the inherent properties of the components for energy conversion, making them simpler and more cost-effective. Passive circuits consist mainly of diodes for rectification, capacitors for energy storage, and inductors for filtering.

Passive energy harvesting circuits are used in applications where the energy source is relatively stable and predictable, such as piezoelectric or thermoelectric generators under steady conditions. They are also used in low-power devices like RFID tags or basic wireless sensors.

How Passive Energy Harvesting Works

Passive circuits typically use rectifiers and storage elements (capacitors or inductors) to convert and store harvested energy. The lack of active management means they cannot dynamically optimize the energy extraction process, making them less efficient under varying conditions.

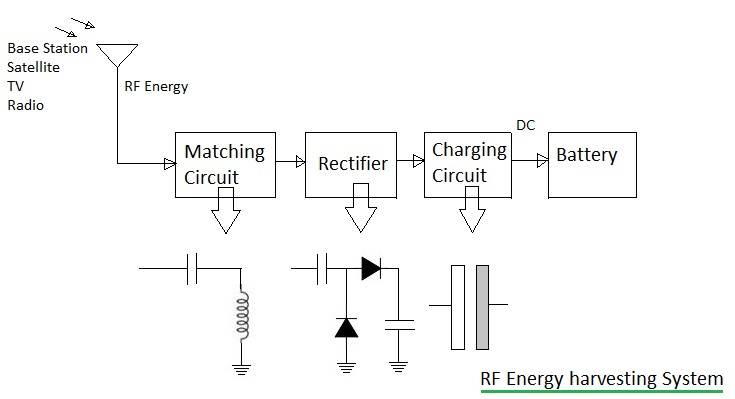

Here’s an example of a passive circuit for radio frequency (RF) energy harvesting:

RF energy harvesting system

Advantages of Passive Energy Harvesting

Here are the benefits of passive energy harvesting:

  1. Simpler design and lower cost due to the absence of active components.
  2. No additional power consumption from the circuit itself.
  3. Smaller and more compact, ideal for space-constrained applications.

Disadvantages of Passive Energy Harvesting

Here are the drawbacks of passive energy harvesting:

  1. Lower efficiency and limited ability to extract energy under varying conditions.
  2. Cannot optimize energy extraction, leading to lower power output.
  3. Limited capability to provide regulated output voltage or current.

Difference Between Active and Passive Energy Harvesting Circuits

The following table highlights the key differences between active and passive energy harvesting circuit types:

ParameterActive energy harvesting circuitPassive energy harvesting circuit
TechnologyUses active components like transistors, op-amps, and microcontrollers for real-time management.Uses passive components like diodes, capacitors, and inductors with no active control.
Energy Conversion EfficiencyHigher efficiency due to dynamic optimization of power extraction.Lower efficiency as energy conversion is not actively managed.
Adaptability to Environmental ChangesCan adapt to changes in energy source conditions (e.g., variable light, vibration).Limited adaptability to changing conditions, performs best in stable environments.
ComplexityComplex design with more components and higher cost.Simpler design with fewer components and lower cost.
Power ConsumptionConsumes some power for active components like microcontrollers.Consumes no additional power, relying solely on passive elements.
Output StabilityProvides regulated and stable output, suitable for sensitive electronics.Unregulated output, which may vary with input conditions.
Size and Form FactorTypically larger due to additional components.Smaller and more compact.
Suitability for Low Power SourcesCan efficiently harvest energy from very low power sources.Less efficient for low power sources, may not provide usable output.
Initial CostHigher initial cost due to the inclusion of active components.Lower initial cost with minimal component requirements.
ApplicationsSuitable for applications with variable energy sources or requiring stable output.Best suited for steady energy sources and less demanding applications.

Conclusion

Active and passive energy harvesting circuits each have unique advantages depending on the application. Active energy harvesting circuits use external power sources to optimize energy capture and provide higher efficiency, making them suitable for environments with intermittent or low-energy sources. In contrast, passive circuits are simpler and more power-efficient, as they rely solely on the energy being harvested, but may have lower overall efficiency. The choice between them depends on the energy availability, complexity, and efficiency requirements of the application.
