RF to IR Converter: Radio Frequency to Infrared Conversion Explained
Advertisement
In today’s interconnected world, seamless communication between devices is essential. RF to IR converters play a pivotal role in bridging the gap between radio frequency (RF) and infrared (IR) signals, enabling devices with diverse communication protocols to work together. This article delves into the workings, applications, and benefits of RF to IR converters, including their reverse functionality, IR to RF conversion.
As we know, IR (Infrared) and RF (Radio Frequency) have their own advantages and disadvantages when used for controlling applications. IR is a Line of Sight way of communication and hence it is more secure. Being a LOS system, it cannot be used to transmit signals to longer distances, and hence RF needs to be used for the same. Both RF and IR-based converters are mainly targeted for remote control applications. In such applications, RF operates in the ISM band.
ISM band uses different frequencies in different regional locations. Most popular among them is 434 MHz used in Europe and Africa, and 902 to 928 MHz used in America.
In order to utilize the benefits of both IR and RF-based technologies, converters have been developed from one to the other. The following section describes IR to RF converters and RF to IR converters.
RF to IR Converter

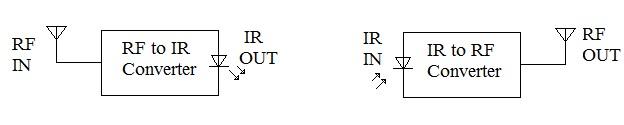

As shown in the figure, an RF to IR converter converts Radio Frequency Signal-based commands to Infrared Signal-based commands. The following functionalities are incorporated in the design of an RF to IR Converter:
- Detection of RF carrier
- Clock recovery and Synchronization in order to decode data properly.
- Manchester decoding of the payload part carried in the received frame.
- Payload Bit extraction from the decoded frame.
- Once the data is decoded, it needs to be transmitted over an IR (Infrared) carrier frequency of 38 KHz with the use of an LED.
IR (Infrared) to RF Converter
As shown in the figure, an IR to RF converter converts an Infrared signal to a Radio Frequency signal. The following functionalities are incorporated in the design of an IR to RF Converter:
- The infrared frame is received and decoded into bits.
- The decoded data bits are passed through the modulator (ASK or FSK) and converted to RF carrier frequency.
- The RF-converted data is transmitted using an antenna.
Conclusion
RF to IR converters exemplify the ingenuity of modern technology, enabling effortless communication across different signal types. Whether it’s for home automation, remote controls, or industrial systems, these converters are essential tools that simplify interactions between RF and IR-enabled devices. As technology evolves, their significance is only set to grow, ensuring compatibility and enhanced functionality in diverse applications.
