RF Sputtering: Advantages and Disadvantages

This page explores the benefits and drawbacks of Radio Frequency (RF) sputtering. Let’s dive into the pros and cons of this deposition technique.

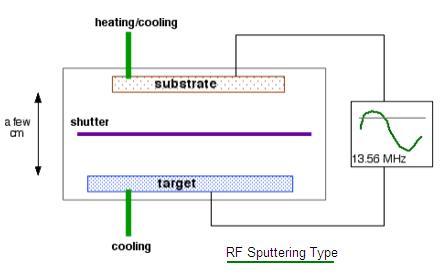

Here’s a look at a typical RF sputtering system:

RF Sputtering

Key Features of the System:

  • RF Source Frequency: 13.56 MHz
  • RF Peak-to-Peak Voltage: 1000 V
  • Electron Densities: 109 to 1011 Cm-3
  • Chamber Pressure: 0.5 to 10 mTorr

RF sputtering involves alternating positive and negative cycles. During the positive cycle, electrons are drawn to the cathode, creating a negative bias. In the negative cycle, ion bombardment continues. Crucially, this method prevents ion buildup on insulating targets by avoiding a constant negative voltage on the cathode.

RF Sputtering Advantages

Here are the key advantages of using RF sputtering:

  • Improved Film Quality & Step Coverage: RF sputtering generally produces films with better quality and step coverage compared to evaporation techniques.
  • Versatile Material Deposition: It’s well-suited for depositing a wide range of materials, including insulators, metals, alloys, and composites. It particularly excels with insulating targets.
  • Reduced Charge-Up Effects & Arcing: The use of an AC RF source at 13.56 MHz helps to minimize charge-up effects and arcing. This is because the electric field sign at every surface inside the plasma chamber changes with the RF signal.
  • Efficient Operation at Low Pressures: RF sputtering can operate at low pressures (1 to 15 mTorr) while sustaining plasma, leading to higher efficiency.
  • Applicable to Any Film Type: This technique can be used to sputter virtually any type of film.
  • Advanced RF Diode Sputtering: Recently developed RF diode sputtering techniques offer improved performance compared to standard RF sputtering.

RF Sputtering Disadvantages

Despite its advantages, RF sputtering also has some drawbacks:

  • Low Deposition Rates: Deposition rates can be quite slow for certain materials when using RF sputtering.
  • Complex RF Power Application: Applying RF power isn’t straightforward. It necessitates expensive power supplies and additional impedance matching circuitry.
  • Stray Magnetic Field Leakage: Leakage from ferromagnetic targets can disrupt the sputtering process. While sputter guns with strong permanent magnets can mitigate this, they increase the system’s cost.
  • Heat Generation: Most of the incident energy on the target is converted into heat, which needs to be removed, adding complexity to the system.
  • Difficult Uniform Deposition on Complex Structures: Achieving uniform deposition on complex structures like turbine blades can be challenging.
  • Challenges with Thick Coatings: Producing high-performance thick coatings can be difficult due to higher internal residual stress levels.
