This page covers the advantages and disadvantages of Frequency Hopping Spread Spectrum (FHSS). It outlines the benefits and drawbacks of FHSS, and also gives a basic introduction to what FHSS is.

What is FHSS? (Introduction)

  • FHSS stands for Frequency Hopping Spread Spectrum.
  • In FHSS, the carrier frequency used for modulation is varied according to a predefined Pseudonoise Random Sequence (PRS) generator. Both the transmitter and receiver know this PN sequence.
  • FHSS techniques are divided into two main types:
    • Fast Hopping: The hopping rate is higher than the information rate.
    • Slow Hopping: The hopping rate is slower than the information rate.
  • Information bits are transmitted using different frequencies.
  • FHSS offers a capacity of about 3 Mbps.
  • It’s a very robust technology.
  • It’s well-suited for point-to-multipoint scenarios.

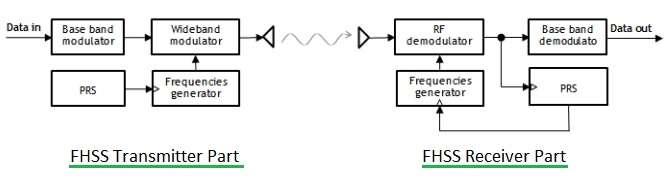

FHSS Transmitter Receiver Block Diagram

Figure 1: FHSS transmitter and FHSS receiver block diagrams.

Benefits or Advantages of FHSS

Here are the key benefits and advantages of FHSS:

  • Robust Transmission: FHSS provides a very robust transmission path, even in the presence of interference like multipath, noise, and other wireless transmissions. This is thanks to its support of a wide bandwidth.
  • Point-to-Multipoint Applications: FHSS can be effectively used in point-to-multipoint setups.
  • Coexistence with WLAN: It can support about ten nearby WLAN compliant Access Points (APs) without causing significant interference problems.
  • Security: FHSS provides a level of security against intrusion because only the transmitter and receiver know the PN codes used for frequency hopping.

Drawbacks or Disadvantages of FHSS

Here are the main disadvantages of FHSS:

  • Bursty Errors: Because FHSS relies on carrier frequencies to transmit information bits, it’s prone to strong bursty errors due to frequency selective fading.
  • Lower Data Rate: It supports a lower data rate of 3 Mbps compared to the 11 Mbps offered by DSSS (Direct Sequence Spread Spectrum).
  • Limited Coverage Range: FHSS requires a high Signal-to-Noise Ratio (SNR) at the receiver, which can lead to a lower coverage range.
  • Obsolete Technology: The modulation scheme has become somewhat obsolete due to the emergence of newer wireless technologies in wireless products.
