E-Band vs. V-Band Microwave Communication: Key Differences

Microwave communication has become a cornerstone of modern wireless networks, providing high-speed data links essential for various applications, including backhaul for mobile networks, enterprise connectivity, and broadband internet services. Two significant frequency bands used in microwave communication are the E-band and V-band. This article explores these bands, highlighting their advantages, disadvantages, and the key differences between them.

E-Band Overview

E-band operates in the frequency range of 71-76 GHz and 81-86 GHz, split into two separate bands. This band is highly valued for its ability to support high-capacity data transmission over relatively long distances compared to other millimeter-wave frequencies.

Advantages and Disadvantages of E-band

Following are the benefits or advantages of E-band:

• E-band supports data rates up to 10 Gbps or more, making it ideal for high-capacity backhaul and fronthaul links in telecommunications.
• Compared to V-band, E-band offers longer transmission distances due to lower attenuation.
• E-band provides wider channel bandwidths (up to 5 GHz), allowing for high data throughput.
• Operating at high frequencies reduces interference from other wireless systems, ensuring cleaner communication channels.
• E-band is globally available and lightly licensed, providing easy deployment for various applications.

Following are the drawbacks or disadvantages of E-band:

• The equipment needed for E-band is generally more expensive due to advanced technology requirements.
• E-band requires a clear line-of-sight between transmitting and receiving antennas, limiting its use in obstructed environments.
• While better than V-band, E-band still suffers from weather-related attenuation, such as rain fade.

V-Band Overview

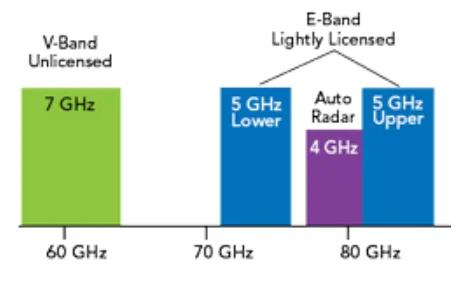

V-band operates within the 57-71 GHz range. The figure depicts a smaller part of this band with a bandwidth of 7 GHz. This band is known for providing ultra-high capacity links over short distances, making it popular for small cell backhaul and high-density urban environments.

Advantages and Disadvantages of V-band

Following are the benefits or advantages of V-band:

• V-band can achieve data rates of up to 10 Gbps or more, making it suitable for applications that require extremely high bandwidth.
• V-band operates in an unlicensed spectrum, allowing for quick deployment without the need for extensive regulatory approval.
• The large amount of available spectrum in V-band supports the deployment of multiple channels, enhancing capacity.
• V-band equipment is often smaller and easier to install, making it ideal for urban environments.

Following are the disadvantages of V-band:

• Due to higher atmospheric absorption, particularly by oxygen, V-band links are limited to short distances, typically less than 1 km.
• V-band is highly susceptible to rain fade and other weather conditions, significantly affecting link performance.
• Being unlicensed, V-band is prone to interference from other devices operating in the same frequency range.

Difference between E and V band

The following table compares E-band vs. V-Band with respect to various parameters and derives differences between them.

Summary

E-band and V-band are crucial frequency ranges in microwave communication, each serving distinct roles in network infrastructure. E-band excels in longer-range, high-capacity links with minimal interference, making it suitable for backhaul and fronthaul connections. In contrast, V-band offers ultra-high capacity over short distances in unlicensed spectrum, ideal for urban deployments and small cell backhaul. Understanding their advantages, disadvantages, and differences helps network planners and engineers select the appropriate band for specific applications, ensuring optimal performance and reliability in modern wireless networks.
