RFActive vs. Passive Radar: Key Differences Explained
Active radar and passive radar are two distinct types of radar systems with different applications across various fields like aviation, military, and communications. Active radar systems transmit their own electromagnetic signals to detect and track objects, while passive radar relies on external sources like TV or radio signals to locate targets without emitting any signals. This article explores their working principles, advantages, disadvantages, and applications to help you understand the differences.
Active Radar: Emitting and Listening
Definition
Active radar systems emit their own electromagnetic waves, typically radio waves or microwaves, from a transmitter. The system then “listens” for reflections (echoes) of these waves from objects (targets). By analyzing the returned signals, active radar can determine the distance, speed, and direction of the target.

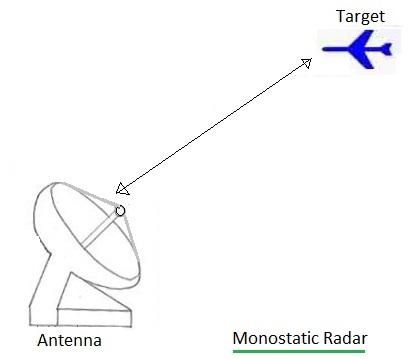

Figure 1: Active Radar Operation
Key Features of Active Radar
- Emits a radio frequency pulse towards a target and receives the reflected pulse.
- The transmitter and receiver are located at the same place, making it a monostatic radar.
- Range Calculation: The range of the target (D) is calculated as:
D = c*t/2, where:c= 3 x 108 meters/second (speed of light)t= time delay between signal emission and reception from the target (total time)
Example
- AESA Radar (Active Electronically Scanned Array Radar)
Advantages of Active Radar
- Long-Range Detection: Can detect objects at long distances.
- Detailed Information: Provides detailed information on target range, speed, and angle.
- Environmental Resilience: Less affected by environmental factors such as ambient light or temperature.
Disadvantages of Active Radar
- Detectability: Can be detected by enemy radar warning receivers.
- Power Consumption: Requires more power compared to passive radar.
- Susceptibility to Jamming: Susceptible to electronic countermeasures (jamming).
Active Radar Applications
- Military surveillance and target tracking
- Air traffic control
- Weather monitoring (e.g., detecting precipitation)
- Maritime navigation
Passive Radar: Listening Without Emitting
Definition
Passive radar systems do not emit their own signals. Instead, they rely on existing sources of electromagnetic energy (e.g., commercial broadcasts, cell towers, TV stations). The system uses the difference in signal arrival times between a direct path (transmitter to receiver) and a reflected path (transmitter to target to receiver) to detect and track targets.

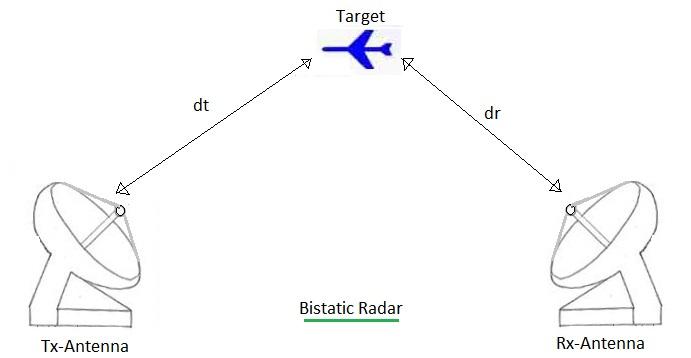

Figure 2: Passive Radar Operation
Key Features of Passive Radar
- Relies on radio frequency pulses emitted from external transmitters.
- The transmitter and receiver are located in different places, making it a bistatic radar.
- Range Calculation: Range or distance is calculated based on the time delay between
t1(time from transmitter to receiver directly) andt2(time from reflected signal to reach receiver). - The system uses time difference of arrival (TDOA) and frequency difference of arrival (FDOA) to analyze target properties.
Example
- PESA radar (Passive Electronically Scanned Array Radar)
Advantages of Passive Radar
- Stealthy Operation: Difficult to detect due to the absence of signal transmission.
- Low Power Consumption: Lower power consumption.
- Deployment Flexibility: Can be deployed in regions where active transmission is restricted.
Disadvantages of Passive Radar
- Source Dependency: Dependent on the availability of external electromagnetic sources.
- Limited Range: Limited range compared to active radar.
- Reduced Accuracy: Less accurate in range and speed measurements.
Passive Radar Applications
- Covert surveillance and reconnaissance (low probability of detection)
- Monitoring air traffic without interference
- Border security and air defense
- Anti-stealth aircraft detection
Active vs. Passive Radar: A Comparison
| Parameter | Active Radar | Passive Radar |
|---|---|---|
| Signal Transmission | Emits its own electromagnetic waves | Does not emit any signals, uses external sources |
| Detectability | Can be detected by other systems | Low probability of detection (stealthy) |
| Power Consumption | Higher (requires power for signal transmission) | Lower (no power needed for transmission) |
| Range and Accuracy | Typically has a longer range and higher accuracy | Shorter range and lower accuracy |
| Operational Mode | Active mode (transmits and receives) | Passive mode (receives only) |
| Susceptibility to ECM | More susceptible to jamming and interference | Less susceptible due to lack of transmission |
| Dependence on External Sources | Independent, can operate standalone | Dependent on external transmitters like TV or radio |
| Cost | More expensive | Less expensive |
| Complexity | More complex | Simpler architecture |
| Applications | Air traffic control, military tracking, weather radar | Covert surveillance, air traffic monitoring |
Conclusion
Both active and passive radar serve different purposes based on specific operational needs. Active radar excels in long-range detection and high accuracy, making it ideal for applications like air traffic control, military surveillance, and weather monitoring. Passive radar, on the other hand, is better suited for covert operations and situations requiring low detectability, leveraging external signals for its operation. Understanding their characteristics in terms of signal transmission, power consumption, and detectability is crucial for selecting the most appropriate radar system for a given application.
