Understanding XCP Protocol in Automotive

The full form of XCP is Universal Measurement and Calibration Protocol. It’s essentially an interface that gives you read and write access to the memory of an ECU (Electronic Control Unit).

An A2L file format holds memory addresses and other information useful for interpreting the data being transferred. This method isn’t limited to any specific embedded ECUs.

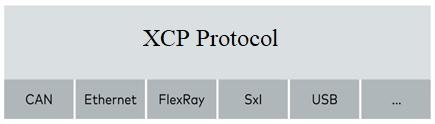

The XCP protocol supports a single master and multi-slave approach. In the automotive industry, it’s a critical asset, offering real-time communication, high performance, and standardization for efficient calibration and testing of ECUs. In XCP protocol, the data transport goes through any of the transport protocol layers such as CAN, CAN FD, Sxl (SPI or SCI), Ethernet, USB, FlexRay etc.

The measurement and calibration system acts as the XCP master, while the driver in the ECU acts as the slave. The XCP master uses A2L description files to read out all the necessary information.

Benefits and Advantages of XCP Protocol

Here’s a breakdown of the benefits and advantages of using XCP protocol in the automotive industry:

1. Open Industry Standard: XCP is an open standard, ensuring compatibility and interoperability across various tools and ECUs from different manufacturers.

2. Versatile Network Compatibility: XCP can work with various network communication technologies like CAN, CAN FD, FlexRay, and Ethernet. This allows it to adapt to the diverse communication architectures found in modern vehicles.

3. Resource Optimization: It’s designed to minimize resource consumption, including memory, runtime in the ECU, and bus load.

4. Plug and Play Communication: Supports easy, plug-and-play communication between the master and slave devices.

5. Real-Time Communication: Designed for real-time communication between calibration tools and ECUs, allowing for immediate changes and adjustments of ECU parameters. This means engineers and technicians can make adjustments quickly with minimal disruption.

6. High Performance: XCP offers high performance, enabling rapid data transfer and quick response times, crucial for handling the vast amounts of data generated by modern vehicles and ECUs.

7. Flexible Protocol: It’s a flexible protocol that can be adapted to various applications within the automotive industry.

8. Security Features: Many XCP implementations include security features to protect against unauthorized access and ensure the integrity of calibration data.

9. Scalability: XCP is scalable and supports multiple ECUs within a vehicle.

10. Data Logging: XCP protocol facilitates data logging, essential for capturing and analyzing vehicle performance and ECU behavior during various test scenarios.

Conclusion

XCP protocol provides numerous advantages, like flexibility, scalability, and security features, making it adaptable to various ECU applications and network communication technologies. Its open standard nature ensures compatibility and interoperability, reducing downtime and simplifying the calibration process. It also provides essential data logging capabilities and supports innovation within the industry.

Despite its numerous benefits, XCP’s effectiveness hinges on proper implementation, the quality of the calibration tools used, and the specific use case within the automotive industry. Manufacturers and engineers might choose to implement XCP in different ways to best suit their individual needs and requirements.
