OBD2 (On-Board Diagnostics 2) is a standardized diagnostic system found in most modern vehicles. It’s designed to monitor and report on the performance and overall health of your car’s various systems. The OBD2 connector is the standardized port in your vehicle where you can plug in an OBD2 scanner or diagnostic tool. This allows you to retrieve information about your vehicle’s condition.

Location

The OBD2 connector is typically located somewhere near the driver’s seat. You’ll often find it under the dashboard or near the steering column. It’s usually easily accessible so technicians, mechanics, and even vehicle owners can connect a compatible OBD2 scanner or diagnostic tool.

Functionality

Connecting a scanner or diagnostic tool to the OBD2 connector allows you to:

  • Read diagnostic trouble codes (DTCs).
  • Access real-time data from various sensors and systems.
  • Perform diagnostic tests.

Pinout and Protocols

The OBD2 connector has 16 pins, each serving a specific function. OBD2 supports several communication protocols. The specific protocol used can vary depending on the vehicle’s make, model, and manufacturing year. Here are some common protocols:

  • SAE J1850 PWM (Pulse Width Modulation)
  • SAE J1850 VPW (Variable Pulse Width)
  • ISO 9141-2
  • ISO 14230-4 (KWP2000)
  • ISO 15765-4 (CAN, Controller Area Network)
  • SAE J1939 (Truck and Bus OBD)
  • UDS (Unified Diagnostic Services)
  • OBD2 Proprietary Protocols

OBD2 Connector Pinout

Here’s a table outlining the OBD2 pins and their respective functions:

PinDescription
1Manufacturer discretion
2SAE J1850 Bus + (PWM)
3Manufacturer discretion
4Chassis Ground
5Signal Ground
6CAN High (ISO 15765-4, SAE J2284)
7K-line (ISO 9141-2, ISO 14230-4)
8Manufacturer discretion
9Manufacturer discretion
10SAE J1850 Bus - (PWM)
11Manufacturer discretion
12Manufacturer discretion
13Manufacturer discretion
14CAN Low (ISO 15765-4, SAE J2284)
15L-line (ISO 9141-2, ISO 14230-4)
16Battery power (+12V or +24V as per type-A or type-B respectively)

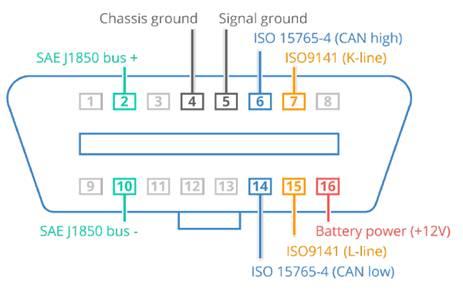

Here is the OBD2 connector pinout and wiring diagram:

OBD2 Connector pinout

Type-A vs. Type-B OBD2 Connectors

OBD2 Type-A and Type-B connectors are different physical connectors used in OBD2 systems. These connectors serve the same primary function, which is to provide a standardized interface for connecting OBD2 diagnostic tools or scanners to a vehicle’s onboard computer system (ECU). However, they have some differences in terms of their shape and pin arrangement. Both are 16 pin in size with two rows of eight pins each. The pins are positioned in such a way that top row consists of pins 1 to 8 and bottom row has pins 9 to 16. Here’s a comparison of OBD2 Type-A and Type-B connectors.

  • Shape: OBD2 Type-A is a rectangular connector with a trapezoidal shape, wider at the top and narrower at the bottom. Type-B is also rectangular, but with a different shape, usually nearly square.
  • Voltage: Type-A provides +12V power supply output, whereas Type-B provides +24V output.
  • Groove: Type-B OBD2 connector has an interrupted groove in the middle.

Because of this groove, a type-B OBD2 adapter cable is compatible with both types A and B connectors, while a type A OBD2 cable will not fit into a type-B socket.

Advantages of Using an OBD2 Connector

There are many benefits to using the OBD2 connector:

  • Easy Access to Diagnostics: It allows quick identification and resolution of vehicle issues by providing easy access to real-time data and diagnostic trouble codes.
  • Standardization: Its standardized design promotes uniformity and simplifies emissions testing, ensuring vehicles meet environmental standards.
  • Reduced Repair Costs: Early detection of problems can lead to reduced repair costs.
  • Wide Compatibility: They are commonly found in domestic, Asian, and European vehicles.
