This article compares ultrasound and X-ray imaging techniques, highlighting the key differences between these diagnostic methods. Both are used to identify the root cause of illnesses, but they operate on different principles and have distinct advantages and disadvantages. Other common diagnostic techniques include CT-scans and MRI (Magnetic Resonance Imaging). Ultrasound uses frequencies above audible range.

Ultrasound is a non-invasive imaging technique used to visualize internal structures and organs. It provides valuable information about the body without surgery or harmful radiation.

X-rays penetrate opaque objects to create images of internal structures. They are used for both diagnosis and therapeutic purposes.

CAT (Computerized Axial Tomography) combines X-ray imaging with computer techniques for enhanced accuracy.

MRI (Magnetic Resonance Imaging) relies on the nuclear properties of hydrogen atoms. MRI images excel at visualizing tumors, inflammation, and vascular abnormalities.

What is Ultrasound Imaging?

Ultrasound in medicine operates on the same principles as SONAR, used by bats and ships. Our audible frequency range spans from 20 Hz to 20 kHz. Ultrasound waves utilize frequencies exceeding 20 kHz. Diagnostic ultrasound typically uses frequencies between 1 and 10 MHz. These waves travel longitudinally.

The propagation of ultrasonic waves depends on the elastic properties of the medium. The average speed of ultrasound waves is calculated as:

c = (β/�?)^0.5

Where:

  • β = Modulus of elasticity
  • �? = Density of medium

Ultrasound imaging system block diagram

As in SONAR, acoustic waves are transmitted. Reflected waves are received by the instrument. Most body tissues (except bones and lungs) are primarily water. In ultrasound imaging, sound waves are transmitted into the body. Reflected waves are processed by a computer to construct real-time visual images displayed on a monitor. The returning echoes reveal the size, shape, and composition (solid, liquid, or intermediate) of body organs.

What is X-ray Imaging?

X-ray radiation is electromagnetic radiation with high energy content, capable of ionizing matter. This ionization can damage DNA and body cells. Modern X-ray techniques minimize radiation exposure. X-rays use wavelengths ranging from approximately 0.01 to 10 nanometers.

Due to its ability to penetrate the body, X-ray radiation allows non-invasive visualization of internal anatomy. X-rays are produced in a vacuum tube containing an anode and a cathode.

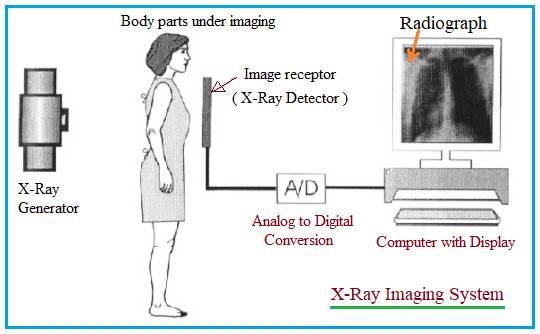

X-Ray Imaging System Block Diagram

An X-ray imaging system typically includes an X-ray generator, a detector, and a computer with a display.

Difference between Ultrasound and X-rays

The following table compares ultrasound and X-rays based on various parameters:

ParametersUltrasoundX-Rays
WaveformLongitudinal sound wavesElectromagnetic (EM) waves
Medium for transmitting wavesRequired, elastic mediumNot required
Waveform generationBy stressing the mediumBy accelerating the electric charge
VelocityDepends on mediumConstant
Similar waveformsAcoustic, seismicRadio, light

Difference between Ultrasound and X-ray Diagnosis

The following table highlights the key differences between ultrasound and X-ray-based diagnosis techniques:

FeatureUltrasoundX-ray
Invasiveness/Side effectsNon-invasive, no long-term side effectsNon-invasive, but potential harmful effects due to ionizing radiation
Energy typeSonic energyEM energy
Medium requirementRequires medium for propagationDoes not require a medium
Image formationEchoes from reflected beamsRadiation leaving the body
Bone penetrationCannot penetrate bones, images only muscles, soft tissues, and bone surfaceShows high-density parts like bones and air cavities well
Real-time imagingReal-time, operator-dependentNot real-time
Gas interferencePoor performance with gas present between transmitter and organNot affected by gas
Depth penetrationLimited, image quality decreases in obese patientsNot limited by body size
PortabilityPortableNot easily portable
Visualization AbilitiesDisplacement of structures/valves and blood flow can be imaged.Not possible.
