This article delves into the world of Thunderbolt interfaces, comparing Thunderbolt 1, Thunderbolt 2, and Thunderbolt 3. Developed by Intel and Apple, Thunderbolt serves as a versatile hardware interface, connecting external peripherals to computers and laptops. It’s designed to be a successor to the older Firewire interface. Let’s explore the key differences between these three versions.

Introduction:

  • Thunderbolt is a hardware interface developed by Intel & Apple to connect external peripherals to computers/laptops.
  • It supersedes the Firewire interface.
  • There are three main versions: Thunderbolt 1, Thunderbolt 2, and Thunderbolt 3.
  • These versions vary in data rates and supported cable lengths.
  • Thunderbolt 1 and 2 support up to 20 Gbps, while Thunderbolt 3 doubles that to 40 Gbps.
  • Maximum cable length can reach up to 100 meters (300 feet).

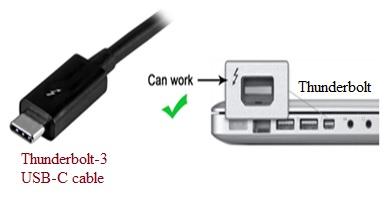

Thunderbolt interface

The Thunderbolt interface cleverly combines PCIe and DisplayPort (DP) functionality, all while providing DC power through a single cable. It operates on an 18V bus, drawing approximately 550 mA of current.

Thunderbolt 1

Introduced in 2011, Thunderbolt 1 boasts the following features:

  • Release Year: 2011.
  • Connector: Uses a Mini DisplayPort (MDP) connector.
  • Data Rate: Employs two channels, each supporting 10 Gbps, resulting in a total of 20 Gbps.
  • Protocols: Utilizes 4 x PCI Express 2.0 and DisplayPort 1.1a.

Thunderbolt 2

The Thunderbolt 2 interface, released in 2013, offers these characteristics:

  • Release Year: 2013.
  • Connector: Also uses the Mini DisplayPort (MDP) connector.
  • Data Rate: Supports a bit rate of 20 Gbps.
  • Protocols: Uses 4 x PCI Express 2.0 and DisplayPort 1.2.

Thunderbolt 3

Here’s what makes Thunderbolt 3 stand out:

  • Release Year: 2015.
  • Connector: Utilizes a USB-C connector.
  • Data Rate: Supports a bit rate of 40 Gbps.
  • Protocols: Incorporates 4 x PCI Express 3.0, DisplayPort 1.2, HDMI 2, and USB 3.1 Gen 2.

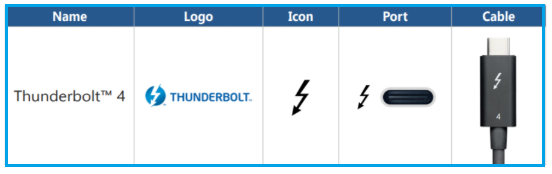

Thunderbolt 4 Interface
