Spatial Multiplexing in MIMO: Advantages and Disadvantages

spatial multiplexing
mimo
data rate
wireless communication
spectral efficiency

Spatial multiplexing is a technique used in wireless communication to increase the data transmission rate and spectral efficiency by exploiting multiple antennas at both the transmitter and receiver ends. This method is a key feature of MIMO (Multiple Input Multiple Output) systems, which are widely used in modern wireless standards such as Wi-Fi, LTE, and 5G.

In spatial multiplexing, the data stream is divided into multiple independent sub-streams, each transmitted simultaneously through different antennas. These sub-streams travel through separate spatial paths, and at the receiver end, the multiple antennas use signal processing techniques to separate and decode these streams. This increases the overall data rate without requiring additional bandwidth or transmit power.

Key Features of Spatial Multiplexing

  • Multiple Antennas: Requires at least two antennas on both the transmitter and receiver to enable multiple spatial paths.
  • Increased Data Rates: By sending multiple data streams simultaneously, spatial multiplexing effectively multiplies the transmission rate by the number of streams.
  • Signal Separation: Advanced algorithms like Maximum Likelihood Detection (MLD) or Zero-Forcing (ZF) techniques are used at the receiver to separate and decode the spatially multiplexed signals.

Advantages of Spatial Multiplexing

Following are the benefits or advantages of Spatial Multiplexing:

  1. Spatial multiplexing significantly boosts the data rate by transmitting multiple streams of data simultaneously over the same frequency band, enhancing throughput without increasing bandwidth.
  2. It makes better use of the available spectrum by transmitting multiple data streams in parallel, increasing the amount of data transmitted per unit of spectrum.
  3. The performance gains scale with the number of antennas; adding more antennas can further increase the data rate, making it suitable for evolving wireless standards and high-demand applications.
  4. Particularly beneficial in environments with rich scattering (e.g., urban areas), spatial multiplexing can substantially increase the capacity of wireless communication systems, supporting more users and devices.

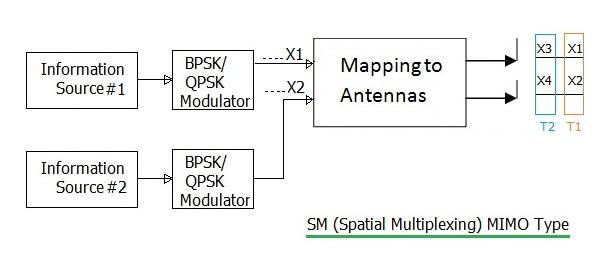

SM : Spatial-Multiplexing MIMO

The figure depicts Spatial Multiplexing (SM) technique. Refer STBC Vs. SM for difference between STBC and SM techniques.

Disadvantages of Spatial Multiplexing

Following are the drawbacks or disadvantages of Spatial Multiplexing:

  1. Requires multiple antennas and sophisticated signal processing algorithms at both the transmitter and receiver, increasing the complexity, power consumption, and cost of the devices.
  2. The effectiveness of spatial multiplexing relies heavily on the richness of the multipath environment. In scenarios with poor scattering or high correlation between antennas, such as in line-of-sight conditions, the performance gains can be limited.
  3. Spatial multiplexing can suffer from inter-stream interference, where signals from different streams interfere with each other. This requires advanced signal processing techniques to manage and mitigate interference, adding to the system complexity.
  4. To separate multiple streams successfully, spatial multiplexing requires a higher Signal-to-Noise Ratio (SNR). In low SNR conditions, the performance can degrade, making it less effective in environments with high noise or interference.
  5. Multiple antennas and complex processing algorithms demand more power, which can be a limitation for battery-powered devices like smartphones and IoT devices.

Conclusion

Spatial multiplexing is a powerful technique that significantly enhances the performance of wireless communication systems by leveraging multiple antennas. While it offers substantial benefits in terms of data rates and spectral efficiency, its effectiveness depends on the channel conditions, and it introduces additional complexity and cost considerations that must be managed in practical implementations.
