Sodium-Ion Batteries: Definition, Components, and Performance

sodium ion
battery
energy storage
electrochemical
technology

A Sodium-Ion Battery (Na-Ion Battery) is a type of rechargeable battery that utilizes sodium ions (Na+) as the charge carriers between positive and negative electrodes. Similar to lithium-ion batteries, they are designed to store and release electrical energy by moving ions back and forth between the electrodes during charging and discharging cycles. Let’s delve into the advantages and disadvantages of sodium-ion batteries, considering their construction and working principle.

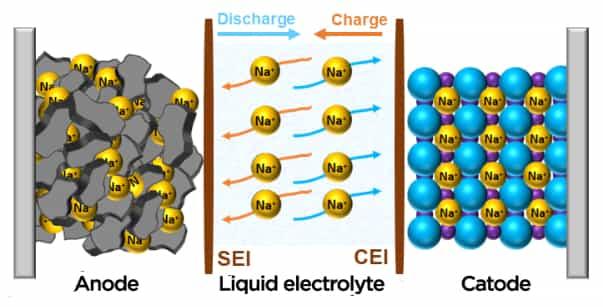

Sodium Ion Battery

Key Components of a Sodium-Ion Battery

The essential components used in the construction of a sodium-ion battery are as follows:

  • Positive Electrode (Cathode): Typically made of a sodium-containing material such as sodium iron phosphate (NaFePO4) or sodium nickel cobalt manganese oxide, i.e., Na(NiCoMn)O2. During the discharge cycle, sodium ions move from the cathode to the anode.

  • Negative Electrode (Anode): Often made of a material that can reversibly include sodium ions, such as hard carbon or graphite. During discharging, sodium ions move from the anode to the cathode.

  • Liquid Electrolyte: This solution facilitates the movement of sodium ions between the cathode and anode. It plays a critical role in the overall performance and safety of the battery.

  • Separator: Prevents direct contact between the anode and cathode but allows the passage of sodium ions and electrons during charge and discharge cycles.

Working Principle of a Sodium-Ion Battery

In a Na-Ion Battery, both the anode and cathode store sodium, while the electrolyte carries charged ions from the anode to the cathode and vice versa through the separator. The movement of sodium ions creates free electrons at the anode, which generates a charge at the positive current collector.

The current then flows from the current collector, powering the device, such as a smartphone, to the negative current collector. The separator blocks the flow of electrons inside the battery.

During discharge, the anode releases sodium ions to the cathode. This generates a flow of electrons from one side to the other. Sodium ions move from the cathode to the anode during charging, while electrons travel through the external circuit.

Benefits (Advantages) of Sodium-Ion Batteries

Here are the key benefits and advantages of Sodium-Ion Batteries:

  • Abundant Sodium: Sodium is far more abundant and widely available than lithium.

  • Lower Cost: The lower cost of sodium could lead to more affordable battery production at large-scale manufacturing.

  • Similar Chemistry: The chemistry of sodium-ion batteries is similar to that of lithium-ion batteries, allowing the use of existing manufacturing processes and infrastructure.

  • Grid-Scale Energy Storage: They can be used in grid-scale energy storage applications, aiding the integration of renewable energy sources.

  • Reduced Environmental Impact: Might have a reduced environmental impact compared to lithium-ion batteries during disposal and recycling.

Drawbacks (Disadvantages) of Sodium-Ion Batteries

The following are the disadvantages of Sodium Ion Batteries:

  • Lower Energy Density: They have lower energy density compared to lithium-ion batteries, which could impact their use in portable electronic devices or electric vehicles (EVs).

  • Less Mature Technology: It is not as mature as lithium-ion technology.

  • Lower Cycle Life: Some sodium-ion battery chemistries may exhibit low life cycle and lower cycling stability compared to lithium-ion batteries, potentially leading to shorter lifespans and more frequent battery replacements.

  • Safety Testing Required: While they might have potential safety advantages over lithium-ion batteries, they need to undergo thorough testing to ensure safety standards are met.

  • Performance Variability: Performance depends heavily on the specific materials used for electrodes, electrolyte, and other components. Achieving consistent and predictable performance can be challenging.

Conclusion

Sodium-ion batteries have garnered attention as potential alternatives to lithium-ion batteries for several reasons, including the abundance of sodium, similar chemistry, and a potentially more environmentally friendly profile.

However, sodium-ion batteries face challenges such as lower energy density compared to lithium-ion batteries. Research and development efforts are ongoing to address these challenges and to improve the performance and commercial viability of sodium-ion battery technology.
