RMI vs. HSI Aircraft Indicators: Understanding the Differences

aircraft navigation
radio magnetic indicator
horizontal situation
aviation
instrument

This document outlines the differences between Radio Magnetic Indicator (RMI) and Horizontal Situation Indicator (HSI) systems used in aircraft navigation.

RMI - Radio Magnetic Indicator

RMI stands for Radio Magnetic Indicator. Essentially, it points towards radio navigation stations, similar to how an Automatic Direction Finder (ADF) indicates the direction of a Non-Directional Beacon (NDB).

RMI,Radio Magnetic Indicator

For the RMI to function correctly, it requires the aircraft’s heading information. By comparing the aircraft’s heading with the VOR (VHF Omnidirectional Range) radial, pilots can determine their bearing from the aircraft to the VOR station.

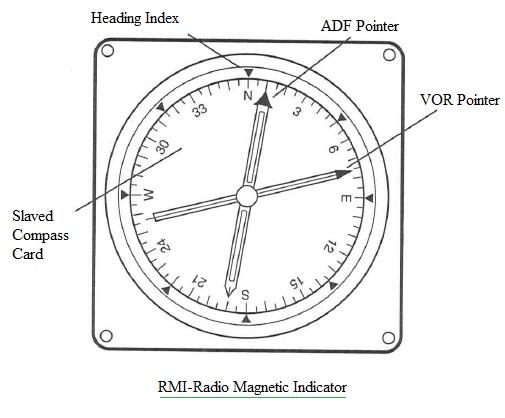

The figure above shows a typical RMI. Notice the two pointers; one commonly indicates the direction to a VOR station, while the other points toward an NDB. The ADF pointer specifically indicates the NDB’s location.

RMIs are particularly useful during approach landings, when altering course, and when switching navigation references – for instance, transitioning from VOR to NDB navigation.

HSI - Horizontal Situation Indicator

HSI stands for Horizontal Situation Indicator. It’s a more sophisticated instrument offering a broader range of navigational information compared to the RMI.

Here are some key characteristics and features of an HSI:

  • Directional Gyroscope: Provides accurate aircraft heading information.
  • Warning Flags: Alerts the pilot to any unreliable information being displayed.
  • Manual Adjustment of Aircraft Heading: Allows pilots to set the desired aircraft heading.
  • Manual Adjustment to Tuned Ground Station: Enables selection of specific ground stations for navigation.
  • Horizontal and Vertical Guidance: Provides essential guidance during the approach and landing phases of flight.
