This article compares Reconfigurable Intelligent Surface (RIS) and Relay technologies, highlighting their key differences in the context of wireless communication.

Introduction

In wireless communication, the signal travels from a transmitter (like a Base Station or eNB) to a receiver (UE or mobile subscriber) through a channel. Obstacles in this channel can significantly impede signal propagation, making it difficult to serve subscribers located behind these blockages. Two primary solutions address this challenge: employing intelligent reflecting surfaces (or metasurfaces) and utilizing classical relays.

Reconfigurable Intelligent Surface (RIS)

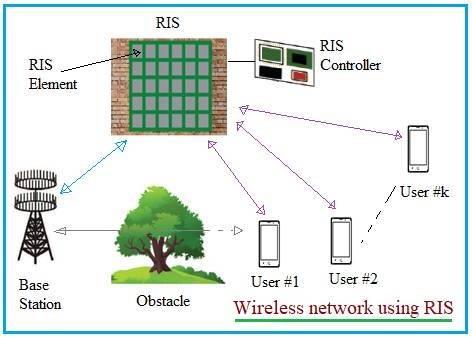

Reconfigurable Intelligent Surface RIS in wireless network

RIS utilizes two-dimensional passive reflecting elements, often referred to as metasurfaces. It operates based on a modified Snell’s law principle, converting plane waves into scattered waves. A RIS controller manages the elements, enabling control over the delay, phase, and polarization of the scattered waves. Figure 1 illustrates RIS deployment in a wireless network scenario. Metasurfaces are particularly useful for serving subscribers blocked by obstacles.

Relay

LTE relay type1

Figure 2 depicts a relay used in an LTE network. As shown, it receives the signal from the LTE Base Station (eNB), processes it, and transmits it to the UE. Common functional blocks within a relay include:

  • RF Down conversion
  • Demodulation and decoding
  • Modulation and Encoding
  • RF Up conversion
  • Signal power amplification

RIS vs. Relay: A Detailed Comparison

Figures 3 and 4 illustrate wireless communication systems employing IRS and Relay, respectively. The table below details the key differences between these technologies.

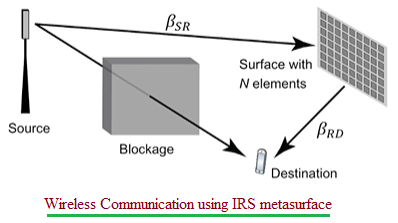

Wireless Communication using IRS

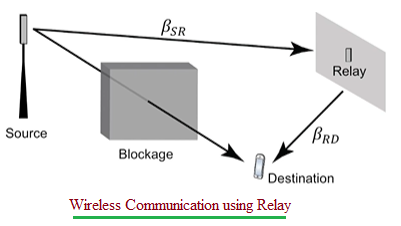

Wireless Communication using Relay

ParametersRIS (Reconfigurable Intelligent Surface)Relay
DefinitionThe reflecting surface which scatters incoming EM waves with controllable delay/phase and polarization.The device which decodes incoming EM signal, amplifies and retransmits it back.
Operating mechanismPassive/active reflectionActive reception and transmission
DuplexFullHalf/Full
Number of transmit RF chainsZeroN ADC/DAC and amplifier
Hardware costLowHigh
Energy consumptionLowHigh
Prelog PenaltyNoYes ( ~ 1/2)

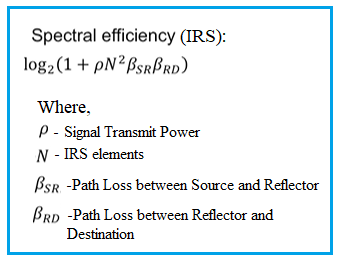

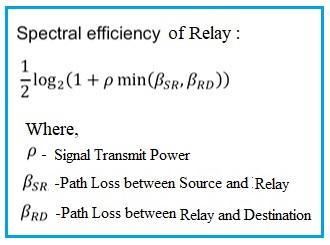

Spectral efficiency formulaspectral efficiency formula of IRSSpectral efficiency formula of Relay
