OMEGA Navigation System: Optimized Method for Estimated Guidance Accuracy

OMEGA is an early avionic navigation system designed for long-range navigation. The acronym stands for Optimized Method for Estimated Guidance Accuracy.

At its core, OMEGA is a 2D aircraft positioning system that relies on a hyperbolic grid, a technique similar to LORAN-C. To get a position fix, the aircraft needs signals from at least two Lines of Position (LOPs). Unlike LORAN-C, which uses master and slave stations, OMEGA needs signals from three ground stations, none of which are specifically designated as master or slave.

OMEGA System Features

Here’s a breakdown of the features for both the ground and aircraft components:

Ground Segment

• OMEGA Transmitters (Tx): There were only eight OMEGA transmitting stations worldwide.
• Operating Frequency: Very Low Frequency (VLF) band, ranging from 10.2 to 13.6 kHz.
• Signal Propagation: OMEGA signals travel as sky waves, bouncing off the ionosphere.

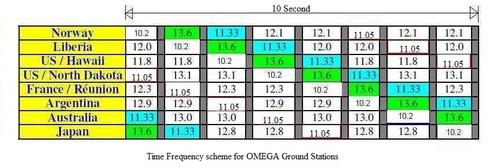

• Time-Sharing Signals: Each ground station transmitted up to four time-shared signals (e.g., 10.2, 13.6, 11.33, or 11.05 kHz).
• Unique ID Signal: Each station also emitted a unique identification signal.
• Signal Transition Time: The transition time between different signal frequencies was approximately 0.2 seconds.
• Transmission Cycle: The entire signal transmission scheme repeated every 10 seconds.
• Station Synchronization: Ground-based atomic clocks were used to keep the stations synchronized.

Aircraft Segment

• Receiver (Rx): The aircraft used an OMEGA receiver system.
• Frequency: VLF
• Operating Range: Approximately 6,000 miles (around 10,000 km).
• Receiver Selectivity: The receiver was highly selective to avoid interference from other signals.

Advantages of OMEGA

• No Line-of-Sight Requirement: OMEGA operated in the VLF band, so it wasn’t limited by line-of-sight issues.
• Direct Routing: Hyperbolic grid navigation allowed for more direct routes, similar to waypoint navigation.
• Long Range: Sky wave propagation, using the ionosphere’s reflective properties, enabled signals to travel over long distances.

Disadvantages of OMEGA

• Accuracy Limitations: The system’s accuracy was limited to around +/- 0.5 miles (approximately +/- 1 km).
• Sky Wave Propagation Error: Variations in signal travel speed could introduce errors.
• Diurnal Error: Changes in the ionosphere’s height during day and night caused errors. The need for signals from three stations, often in different time zones, compounded this issue due to varying ionospheric conditions at different geographical locations.
• Maintenance Costs: Maintaining the OMEGA ground stations was expensive.

OMEGA was discontinued on September 30, 1997, having been superseded by GPS. The North Dakota station is still utilized by the U.S. Navy for VLF submarine communications.
