Microwave Sensor vs. PIR Sensor: Key Differences

sensor microwave pir motion detection security

This article compares microwave sensors and PIR (Passive Infrared) sensors, highlighting their differences. Both are commonly used as occupancy sensors, but their working principles diverge significantly.

A microwave sensor is an active sensor because it emits a microwave signal for detection. Conversely, a PIR sensor is a passive sensor that detects infrared signals emitted by objects, including the human body.

Microwave Sensor Explained

Microwave Motion Sensor

Figure 1: Microwave Motion Sensor

As illustrated above, the microwave motion sensor emits a frequency in the microwave region. It then analyzes the returned/reflected microwave frequency to determine if there’s any motion within its range.

PIR Sensor (Passive Infrared Sensor) Explained

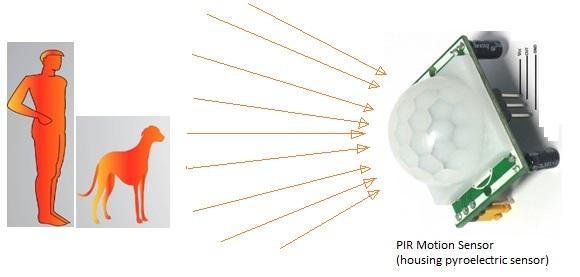

PIR motion sensor

Figure 2: PIR motion sensor

A PIR sensor houses a pyro-electric sensor. This sensor generates energy when exposed to heat.

Since humans and animals radiate energy in the form of infrared radiation, when a person or animal enters the PIR sensor’s range, it receives this thermal energy. This triggers the sensor and detects motion.

Key Differences Between Microwave and PIR Sensors

Here’s a summary of the key differences:

  • Sensitivity: Microwave sensors have higher sensitivity compared to PIR sensors.

  • Coverage Range: Microwave sensors offer a greater coverage range than PIR sensors.

  • Detection Zone: Microwave sensors provide a continuous field of detection, while PIR sensors have a slotted detection zone. This means PIR sensors might miss certain objects within their range. Consequently, microwave sensors tend to be more effective in security applications.

  • False Alarm Rate: Microwave sensors are prone to a higher false alarm rate compared to PIR sensors.

  • Cost: Microwave sensors are typically slightly more expensive than PIR sensors.

  • Energy Consumption: Microwave sensors consume more energy than PIR sensors. PIR sensors typically consume around 0.8 to 1.0 Watts of electricity, while microwave sensors consume approximately 1.1 to 1.5 Watts.

  • Application Suitability: Microwave sensors are well-suited for large area security applications, whereas PIR sensors are better suited for smaller and more compact premises.

Conclusion

For optimal results, consider installing both microwave and PIR sensors to leverage the advantages of each technology. By combining the strengths of both, you can create a more comprehensive and reliable detection system.
