This article explores the basics of medical telemetry, focusing on the radio frequency (RF) and wireless technologies used in healthcare applications. We’ll delve into wireless medical devices used for monitoring patient vital signs and other health-related parameters. A prime example is the use of wireless cardiac monitors, which are becoming increasingly common in hospitals, healthcare facilities, and even at home.

The proliferation of wireless medical devices has led to the development of a wide array of solutions tailored to various needs. The FCC (Federal Communications Commission) recognized this trend and established a new Wireless Medical Telemetry Service (WMTS) in the year 2000. FCC 00-211 specifies the RF frequency bands allocated for medical telemetry. Common bands include 608-614MHz, 1395-1400MHz, and 1429-1432MHz. For more specific information, refer to detailed resources on Medical Telemetry Bands.

The following RF and Wireless technologies are commonly employed in medical telemetry and related applications:

  • FCC devices (47 CFR Part 15)
  • WMTS - Wireless Medical Telemetry Service
  • Cellular or mobile telephones
  • Wireless handheld computers and PDAs
  • Wireless local area networks (WLAN 802.11.a/b/g)
  • Wireless modems for laptop computers
  • Personal area network technologies such as Bluetooth, UWB, and Zigbee
  • RFID - RF identification

medical telemetry

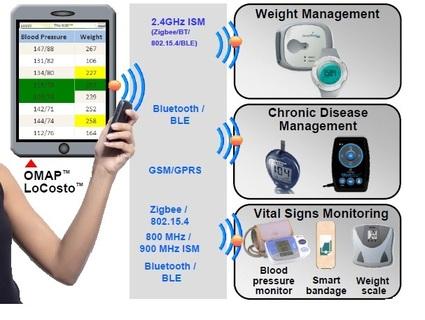

The figure illustrates various wireless medical devices used in telemetry applications.

The FCC’s primary objective is to ensure that wireless medical devices, like all RF devices, operate without interfering with other spectrum users. To achieve this, these devices must comply with Electromagnetic Interference (EMI), Electromagnetic Compatibility (EMC), and other electromagnetic radiation requirements.

Wireless Medical Devices: Short Range vs. Long Range

Wireless medical devices can be broadly categorized into two groups: short-range and long-range.

Short-range technologies are designed to transmit data from the patient to a local receiver or monitor. This local receiver can operate independently or be connected to a central monitoring station.

Long-range technologies, on the other hand, typically transmit patient data directly to a remote monitoring location.

Short Range Patient Monitoring

The following wireless technologies and FCC services support short-range patient monitoring:

  • Inductive implantable medical devices: Used for monitoring and controlling cardio activities. These devices typically operate at 200KHz and cover distances of less than 1 foot.
  • MICS (Medical Implant Communication Service): Facilitates communication between body implants and a nearby controller. These devices operate in the 401-406 MHz band and cover a range of approximately 10 feet.
  • Wi-Fi, Bluetooth, and Zigbee based devices: Used in implanted or body-worn medical devices. These devices operate in various frequency bands and have a range of a few hundred feet.
  • UWB (Ultra-Wideband) devices: Used for medical telemetry and imaging. These are low-power devices with a range of up to a few feet.
  • Implanted microstimulator devices: Function as artificial nervous systems to restore mobility to paralyzed limbs. These devices operate in the 413 to 457 MHz frequency band and cover a distance of a few feet.
  • Wireless Personal Area Networks (WPAN) of body sensors: Used to monitor and control various patient functions. These operate in the 2360-2400MHz band and cover a few feet. They are also known as medical body area networks (BANs).

wireless medical devices

Long Range Medical Telemetry

Available wireless technologies and FCC services to support long-range medical telemetry include:

  • WMTS (Wireless Medical Telemetry Service): Uses unlicensed bands to transmit data from body sensors to remote monitoring systems. They operate in the 600-1432 MHz frequency band and cover several hundred feet.
  • WiMAX technology: Offers data rates of up to 70Mbps over distances of several kilometers. They operate in the 2.5 GHz frequency band.

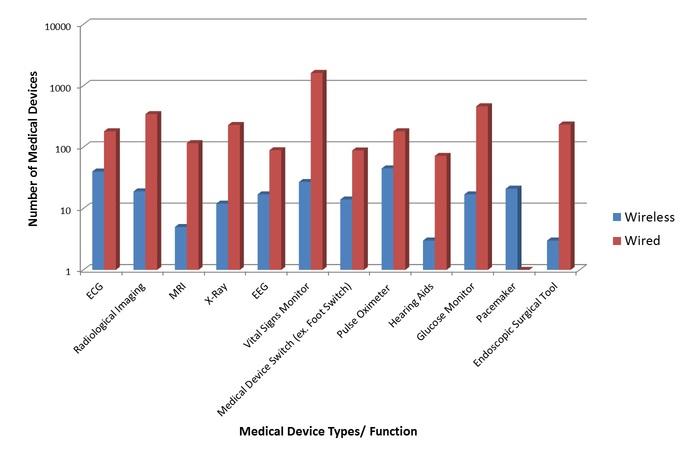

The figure above illustrates various wired and wireless medical devices.

Companies like National Instruments provide solutions for recording and playing back medical RF signals. These solutions include both hardware and software toolkits. They also offer RF and Wireless testing equipment for WBAN (Wireless Body Area Network), Zigbee, WLAN (11n, 11ac, 11ad), Bluetooth, and more.
