LINAC vs. Circular Accelerator: Key Differences Explained

This article compares LINAC (Linear Accelerator) to circular accelerators, highlighting the fundamental differences between them and their respective advantages.

Accelerator Basics

Accelerators work by taking particles, accelerating them using electromagnetic (EM) fields, and then colliding these particles with either a target or other particles. Detectors surrounding the collision point record the resulting events.

How Accelerators Work: Principles and Laws

Accelerators operate based on these fundamental principles:

• Electrical Charges: Electrically charged objects exert forces on each other. Opposite charges attract, while like charges repel.
• Coulomb’s Law: F = -K * q1 * q2 / r^2 (Where F is force, K is Coulomb’s constant, q1 and q2 are charges, and r is the distance between the charges).
• Newton’s Law: F = m * a (Where F is force, m is mass, and a is acceleration).
• A charged particle experiences a force within an electric field, leading to acceleration when a net force acts upon it.

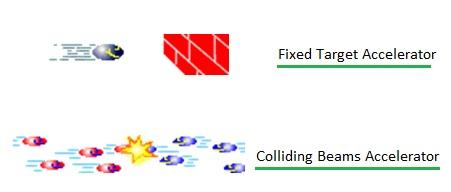

Fixed Target vs. Colliding Beams Accelerators

Accelerators in particle physics can be categorized into two main types:

• Fixed Target: A particle beam is directed at a stationary target.
• Colliding Beams: Two particle beams are steered to collide head-on.

Linear vs. Circular Accelerators

Based on their physical structure, accelerators are further classified as either linear (LINAC) or circular.

LINAC - Linear Accelerator

• Definition: A linear accelerator propels particles in a straight line, like a bullet from a gun. It’s often referred to as LINAC.
• Path: Linear.
• Usage: Typically used for fixed-target experiments.

Linear Accelerators for Cancer Treatment

A significant application of linear accelerators is in cancer treatment. They’re used to treat tumors in various parts of the body by delivering high-energy X-rays to the tumor site while minimizing damage to surrounding healthy tissue. This external beam radiation therapy effectively destroys cancer cells.

In these medical LINACs, radio frequency (RF) or microwave technology accelerates electrons within a waveguide. These electrons collide with a heavy metal target, generating high-energy X-rays. The X-ray beams are carefully shaped to match the tumor’s size and shape. Radiation physicists and oncologists collaborate to ensure precise and safe treatment.

Circular Accelerator

• Definition: A circular accelerator guides particles around a circular path, often used for colliding beam experiments. Particles can also be extracted from the ring for fixed-target experiments. These are also known as Synchrotrons.
• Mechanism: Large magnets are used to bend the particle’s path and maintain its circular motion.

Merits of Linear Accelerators (LINAC) over Circular Accelerators

• Ease of Construction: LINACs are generally simpler to build.
• No Large Magnets: They don’t require massive magnets to steer particles.
• Cost-Effective: LINACs are typically less expensive than circular accelerators. Circular accelerators need huge radii to bring particles to high energy states, resulting in higher construction costs.
• Reduced Radiation Loss: Charged particles radiate energy when accelerated. At high energies, this radiation loss is less pronounced in LINACs compared to circular accelerators.

Merits of Circular Accelerators over Linear Accelerators

• High Energy Particles: Particles in a circular accelerator circulate multiple times, receiving an energy boost with each pass. This allows circular accelerators to achieve very high particle energies without requiring the same length as a LINAC.
• Increased Collision Opportunities: The multiple passes of particles in a circular accelerator increase the chances of collisions at designated interaction points.
