This page covers the advantages and disadvantages of He-Ne lasers. It details the benefits and drawbacks of this common laser type.

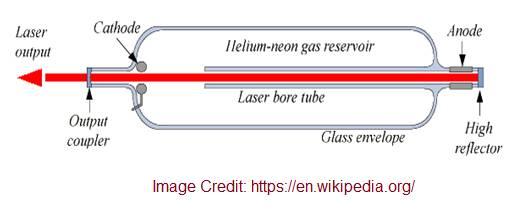

What is a He-Ne Laser?
Introduction:
- The He-Ne laser is one of the most common gas laser types, typically used for low-power operations (ranging from 0.0005 to 0.05 Watts). It’s a workhorse in many applications.
- It operates using a high-voltage, low-current (mA) glow discharge.
- He-Ne lasers are widely used for Line-of-Sight (LOS) communication, recording, and playback of holograms.
- The active medium is a mixture of Helium (He) and Neon (Ne) gases, contained in a quartz tube. Helium, making up about 85% of the mixture, plays a key role, but Neon is the actual lasing medium.
- The operation is similar to other gas lasers, except for the cooling arrangement.
- During the pumping process, a high-voltage pulse initiates an electrical discharge through the gas mixture, with a current strength of about 10 to 20 mA.
- Lasing ultimately results from the de-excitation of carriers between energy levels (e.g., 3s to 2p) of Ne atoms. He atoms are used to provide excitation energy for the Ne atoms. Think of helium as the helper that gets neon ready to lase.
- The primary He-Ne laser output is at a wavelength of approximately 633 nm, which is the familiar red light.
- He-Ne lasers can also produce output at other wavelengths, such as 543 nm (green), 594 nm (yellow), 612 nm (orange), and 1523 nm (infrared).
Benefits or Advantages of He-Ne Laser
Here’s a rundown of the benefits of using a He-Ne laser:
- Small and Compact: They don’t take up much space, making them suitable for integration into various devices.
- Excellent Beam Quality: They offer some of the best inherent beam quality of any laser, producing a virtually pure single transverse mode beam (M² < 1.05). This means a very focused and clean beam.
- Long Lifespan: He-Ne lasers have a long operating life, often lasting 50,000 hours or more.
- Low Heat Generation: They generate relatively little heat and are easily convection-cooled in OEM packages.
- Low Cost: They have relatively low acquisition and operating costs. They are economical to purchase and run.
- Simple Construction: The design of a He-Ne laser is quite simple.
- Good Coherence: They have very good coherence properties, which is important for applications like holography.
- Inherent Safety: Generally, they are considered inherently safe due to their low power output.
Drawbacks or Disadvantages of He-Ne Laser
Despite their advantages, He-Ne lasers also have some drawbacks:
- Lower Output Power: Their output power is relatively low compared to other laser types.
- Low Gain: They are a low-gain device, meaning the amplification of light within the laser cavity is not very strong.
- Wavelength Suppression Challenges: To achieve operation at a single, specific wavelength, other potential wavelengths need to be suppressed. This often requires special techniques and skills, which can increase the cost of the device.
- High Voltage Requirement: They require high voltage for operation.
- Gas Leakage: A potential drawback is the possibility of gas escaping from the laser plasma over time, which can affect performance.
