This page compares Bluetooth and UWB (Ultra-Wideband), highlighting the differences between them concerning various applications and comparison parameters.
Introduction: Both Bluetooth and UWB are short-range wireless technologies developed to eliminate wired connections and enable mobility. They find use in diverse applications such as audio transfer, data & multimedia communication, positioning for tracking, games, the Internet of Things (IoT), and more. Both technologies are classified as WPANs (Wireless Personal Area Networks).
Bluetooth Technology
The Bluetooth wireless technology is developed and managed by the Bluetooth SIG (Special Interest Group). The specifications are documented in IEEE 802.15.1. Bluetooth operates in the 2.4 GHz band.
Up to 8 devices can communicate in ad-hoc mode, forming a small network called a piconet. Multiple piconets can coexist within the same range. Within a piconet, one device acts as the master, while the others act as active slave devices.
Two or more interconnected piconets form a scatternet, as illustrated in Figure 1. Any Bluetooth-enabled device can establish an instant wireless connection with another Bluetooth device within its coverage range.
To accommodate different ranges and data rates, IEEE has developed various Bluetooth specifications. The following table summarizes the features of different Bluetooth versions, from version 1.0 to version 5.3 (as of this writing). The initial version of Bluetooth was released in 1998.
BLE (Bluetooth Low Energy) versions were introduced in 2006 to address the power consumption shortcomings of earlier Bluetooth versions.
Bluetooth versions | Features |
---|---|
Bluetooth V1.2 | Data rate : 720 Kbps |
Bluetooth V2.0 | Enhanced data rate, 2.1 Mbps |
Bluetooth V2.1 | Secure simple pairing, data rate of 2.0 Mbps |
Bluetooth V3.0 | High speed with 802.11 wifi radio, data rate of 24 Mbps |
Bluetooth V4.0 | Low energy protocol, data rate : 24 Mbps |
Bluetooth V4.1 | Coexist with LTE, Indirect IoT device connection |
Bluetooth V4.2 | Introduces features as per IoT requirements, support for IPv6 protocol etc. |
Bluetooth V5.0 | Range : Greater than 400 meters, Data rate : 2 Mbps |
Bluetooth V5.1 | Range : 400 meters, Data rate : 2 Mbps, Power consumption : 0.01 to 0.5 W |
Bluetooth V5.2 | Range : 400 meters, Data rate : 2 Mbps, Power consumption : 1 Watt |
Bluetooth V5.3 | Announced July 2021, Offers low consumption, less interference, improved security, better quality etc. |
The following are the benefits or advantages of Bluetooth:
- It offers wireless ad-hoc connectivity between devices, enabling hands-free operation.
- BLE (Bluetooth Low Energy) offers lower power consumption in object tracking applications compared to UWB.
- It is widely available in devices such as smartphones, watches, tablets, laptops, and headphones.
- It is easy to use and doesn’t require specialized technical knowledge.
- It offers less interference compared to other wireless technologies.
UWB Technology
UWB (Ultra Wide Band) technology utilizes a spectrum wider than 500 MHz. This provides it with several advantages over narrowband technologies. In 2002, the FCC approved the use of unlicensed spectrum within the 3.1 to 10.6 GHz range for UWB applications.
It uses short-duration EM (Electro-Magnetic) pulses for high-speed data transfer over a wide bandwidth (BW). UWB is emerging as a standard alternative to Bluetooth/BLE for low-power and short-range wireless communication.

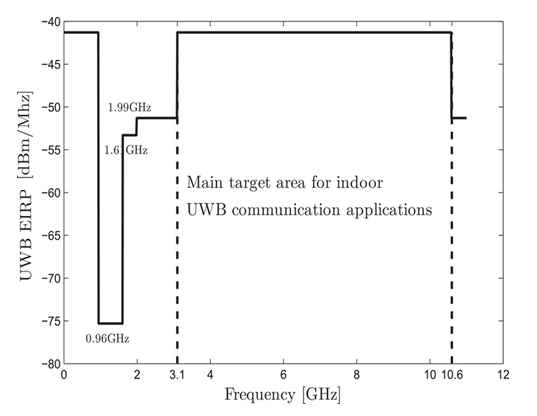

UWB EIRP versus frequency spectrum is shown in Figure 2.
The following are the benefits or advantages of UWB:
- It offers very high data rates.
- It offers low power consumption for non-positioning applications compared to Bluetooth.
- It provides better noise immunity and can withstand fading/jamming.
- It can easily penetrate various materials.
- It coexists with other wireless technologies like Bluetooth and Wi-Fi.
- It uses the TOF (Time of Flight) concept, allowing it to measure the location of UWB-tagged objects with centimeter-level accuracy, even in multipath environments.
Difference between Bluetooth and UWB
Let’s compare UWB and Bluetooth with respect to various applications where these technologies are used, such as positioning, high-speed and multimedia communication, gaming, audio, and the IoT (Internet of Things).
The following table highlights the differences between Bluetooth and UWB based on various parameters.
Features | Bluetooth | UWB |
---|---|---|
Standard | IEEE 802.15.1 | IEEE 802.15.3a, 802.15.4z |
Frequency | 2.400 to 2.480 GHz | 3.1 to 10.6 GHz |
Range/Coverage | 15 meters (Typical), 100 meters (Max.) | 70 meters (Typical), 250 meters (Max.) |
Bandwidth | 1 MHz | 500 MHz to 7.5 GHz |
Modulation | GFSK | BPSK, QPSK |
Number of RF channels | 79 | 16 (o to 15) |
Data Protection | 16 bit CRC | 32 bit CRC |
Latency | High, in milliseconds range | Low, in sub-milliseconds range |
Power consumption (non-positioning) | Higher | Lower, 10 times less compared to Bluetooth |
Positioning accuracy | Medium, Several meters | High, 10 cm |
Data throughput | Less (Upto 2 Mbps) | More (Upto 27 Mbps), 10 times more than Bluetooth |
Energy efficiency | High | Low, 40 times better than Bluetooth |
Hardware expenses | Low | High |
Summary:
Bluetooth has been widely used for commercial and industrial applications for two decades. UWB is an emerging technology with lower latency and minimal power consumption. It will take time for UWB to become as readily available as Bluetooth in consumer devices and applications.
