Barcode Reader Advantages and Disadvantages: A Comprehensive Overview
Advertisement
Barcode readers have revolutionized how businesses manage data, inventory, and transactions. From retail to healthcare, these devices offer speed, accuracy, and cost-efficiency in various applications. However, they also have limitations that need to be considered, such as line-of-sight (LOS) requirements and sensitivity to damage. In this article, we’ll explore how barcode readers work and discover their advantages and disadvantages.
What is a Barcode?
Introduction: A barcode is a predefined format of dark bars and white bars. The bars are structured to contain a specific piece of information. A barcode scanner consists of three parts: an illuminator, a converter, and a decoder. It works based on the electro-optical principle.
There are two ways to create barcodes:
- Discrete symbology: Each character is mapped using a stack of dark and white bars, and gaps are provided between each character.
- Continuous symbology: Gaps are provided after a few characters are represented together using dark/white bars continuously.
The scanning process involves light being emitted towards the barcode, and the reflected light is received by the scanning device to decode the information.
There are two types of barcodes:
- Linear Barcodes: These include code-128, UPC, code-39, etc.
- 2D Barcodes: These include PDF417, data matrix, maxicode, etc.
There are international standards to ensure uniformity in different barcodes. For example, the Code-39 format-based barcodes define 9 bars to represent each symbol and can represent about 43 characters.
Barcodes are smaller and lighter compared to RFID tags and are easy to use. However, they require specifically developed readers to enable scanning and data reading. Barcodes are also less secure compared to RFID, which can be easily forged. Moreover, these codes are susceptible to environmental damage, and scratched or crumpled barcodes may cause problems while scanning.
How a Barcode Reader Works
A barcode reader is an optical scanner that decodes the data embedded in a barcode. It consists of the following parts:
- Light Source: Illuminates the barcode.
- Sensor: Captures the reflected light from the barcode, converting it into electrical signals.
- Decoder: Interprets the electrical signals into meaningful data, such as numbers or text.

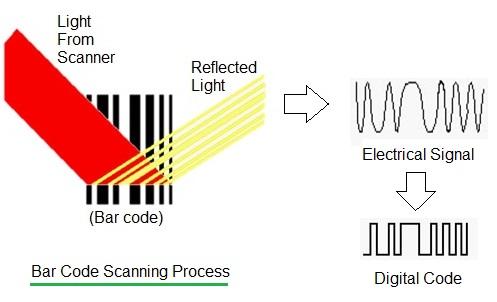

The barcode scanning process involves:
- The light source shines on the barcode.
- The sensor detects the reflected light, which varies according to the black and white stripes of the barcode.
- The decoder translates the sensor signals into digital information that can be processed by a computer.
Advantages of Barcode Reader
- Accuracy: These readers reduce errors compared to manual data entry, ensuring precise data collection.
- Speed: Scanning a barcode takes less than a second, speeding up processes in retail, inventory management, and shipping.
- Cost-Effective: Barcode systems are relatively inexpensive to implement and maintain compared to other tracking technologies like RFID.
- Real-Time Data: Barcodes enable real-time updates to inventory or sales systems, improving efficiency in tracking goods.
- Wide Application: Barcodes are universally accepted and used in industries such as retail, healthcare, logistics, and manufacturing.
- Reduces Training Needs: Employees can quickly learn how to use barcode readers, reducing the need for extensive training.
Disadvantages of Barcode Reader
- Limited Information Capacity: Barcodes can store only a limited amount of data (typically alphanumeric). More advanced data storage requires 2D barcodes or other methods like QR codes.
- Line of Sight (LOS) Requirement: Barcode readers require a direct line of sight to the barcode, which can be a limitation in fast-paced or cluttered environments.
- Damage Sensitivity: Barcodes can become unreadable if they are damaged, smudged, or distorted, leading to delays in processing.
- Static Information: Barcodes usually contain fixed information and cannot be easily updated without reprinting the code, unlike RFID tags, which can store dynamic data.
- Requires Proximity: Most barcode readers need to be close to the barcode for effective scanning, limiting their use in large-scale or long-range applications.
- Slower Compared to Advanced Technologies: While fast, barcode scanning is slower than newer technologies like RFID that can read multiple tags simultaneously without LOS constraints.
- Dependence on Hardware: Barcode scanners work with computers or POS terminals.
Conclusion
Barcode readers provide businesses with an efficient, accurate, and cost-effective solution for data capture and tracking. Despite some limitations, such as the need for a line of sight and sensitivity to damage, their benefits in speeding up operations and improving accuracy far outweigh the drawbacks. As technology continues to advance, barcode readers remain a crucial tool in industries ranging from retail to logistics. However, businesses with more complex needs may want to consider advanced alternatives like RFID for greater flexibility and data capacity.
FAQs on Barcode Reader
Question 1: What is a Barcode Reader?
Answer 1: A Barcode Reader, also known as a barcode scanner, is a device used to read and interpret the data encoded in barcodes. It converts the barcode’s black and white stripes or patterns into readable digital information, typically used in inventory management, retail, and various tracking systems.
Question 2: How does a Barcode Reader work?
Answer 2: A barcode reader uses a light source, typically a laser or LED, to scan the barcode. It then captures the reflected light, which is processed by a sensor that converts the pattern into electrical signals. These signals are then decoded into meaningful data by a decoder or software and displayed or stored for further use.
Question 3: What are the types of Barcode Readers?
Answer 3: The main types of barcode readers include:
- Pen-style readers: Uses a light source and a photodiode to scan barcodes.
- Laser scanners: Uses a laser beam for more precise scanning.
- CCD readers: Uses an array of tiny light sensors to capture the barcode image.
- Camera-based readers: Uses digital cameras and image processing techniques to read barcodes.
Question 4: What are the advantages of using a Barcode Reader?
Answer 4: Barcode readers offer several advantages, including increased accuracy in data entry, which reduces human error and enhances inventory management efficiency. They enable rapid scanning, streamlining checkout processes in retail and improving overall operational speed. Additionally, barcode readers can handle large volumes of items quickly, making them ideal for warehouses and logistics.
Question 5: What are the disadvantages of using a Barcode Reader?
Answer 5: Higher initial investment costs for barcode scanning systems and potential dependency on technology, which may lead to disruptions in case of system failures. Furthermore, barcode readers require proper maintenance and can struggle with damaged or poorly printed barcodes, impacting their effectiveness.
Question 6: What industries commonly use Barcode Readers?
Answer 6: Barcode readers are widely used across industries such as:
- Retail: For inventory management, sales processing, and price checking.
- Logistics and warehousing: For tracking goods, inventory control, and shipment verification.
- Healthcare: For patient identification, drug administration, and medical equipment tracking.
- Manufacturing: For product tracking, quality control, and process automation.
Question 7: What is the difference between 1D and 2D Barcode Readers?
Answer 7:
- 1D Barcode Readers: These readers scan traditional linear barcodes that store data in horizontal lines. They are limited in terms of the amount of information they can hold.
- 2D Barcode Readers: These can read two-dimensional barcodes, such as QR codes, which store more complex data, including text and URLs. 2D barcode readers can also scan barcodes from any angle, providing more flexibility.
