This page covers the advantages and disadvantages of AHCI (Advanced Host Controller Interface).

What is AHCI?

AHCI offers advanced features to the Serial ATA standard. It’s a PCI class device that allows data movement between system memory and SATA devices. AHCI host devices can support between 1 and 32 ports.

These AHCI host devices are also known as HBA (Host Bus Adapters). HBAs support ATA and ATAPI devices, in addition to PIO and DMA protocols. It’s primarily designed for HDDs (Hard Disk Drives) that use spinning disk technology.

The AHCI specification was developed by an AHCI contributor group comprised of various companies, including software, hardware, and OEM vendors, and was led by Intel. The latest version of the AHCI specification is 1.3.1.

The AHCI operating mode is usually found in the BIOS settings of PCs.

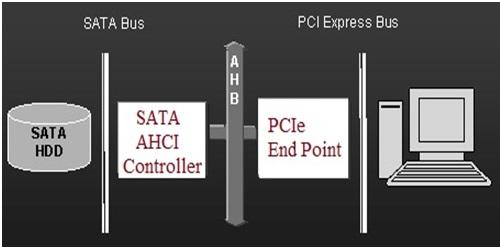

AHCI interface

AHCI encompasses a PCI device containing a base address register (BAR) to implement native SATA features. It has a single command queue and can send up to 32 commands per queue.

AHCI is supported by Windows Vista and later versions of Windows, as well as Linux, OpenBSD, FreeBSD, NetBSD, Solaris 10, OS Z, and eComStation.

The following are features of the AHCI interface, as defined in its specification version 1.3.1:

  • Supports 32 ports
  • 64-bit addressing
  • Elimination of master/slave handling
  • Large LBA support
  • Hot Plug
  • Power Management
  • HW assisted native command queuing
  • Staggered spin up
  • Cold device presence detect
  • Serial ATA superset registers
  • Activity LED generation
  • Port Multiplier

Benefits or Advantages of AHCI

Here are the benefits or advantages of using AHCI:

  • AHCI accesses native command queuing (NCQ) of the SATA interface, improving device compatibility and performance.
  • Hot plugging allows devices to be added or removed from the computer system while it’s running.
  • It offers improved communication speed between the host and drive, enabling faster data exchange.
  • It adds advanced management features to SATA drives.

Drawbacks or Disadvantages of AHCI

The following are the drawbacks or disadvantages of AHCI:

  • AHCI commands can utilize a high number of CPU cycles.
  • It’s not always compatible.
  • It supports less queue depth compared to NVMe. AHCI supports 1 command queue with 32 commands per queue, whereas NVMe supports 64 queues with 64K commands per queue.
  • It supports a single interrupt and doesn’t support interrupt steering. NVMe supports 2K MSI-X interrupts.
  • It requires synchronization and a lock to issue commands.
  • AHCI is an older technology and doesn’t support clusters.
  • AHCI primarily works on Intel chipsets.
