UTP Cable: Advantages and Disadvantages
Advertisement
Unshielded Twisted Pair (UTP) is the most common type of cable used in networking. UTP cables are made up of pairs of twisted copper wires without any additional shielding layer. The twisting of the wire pairs helps to reduce electromagnetic interference (EMI) and crosstalk between adjacent pairs, thus improving signal integrity.
Let’s dive into the basics of UTP cables and explore their advantages and disadvantages.
What is UTP?
Introduction:
- UTP is a type of twisted pair cable; the other is STP (Shielded Twisted Pair).
- It’s commonly used as copper telephone wiring.
- It’s a medium consisting of pairs of wires.

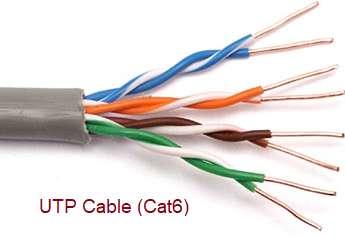

- Each of the eight individual copper wires in a UTP cable is covered with insulating material. Furthermore, the wires in each pair are twisted around each other.
- UTP cables are available in categories 1 through 6.
- UTP cable relies on the cancellation effect produced by twisted pairs to limit signal degradation caused by EMI and RFI. Moreover, the number of twists in wire pairs is appropriately used to reduce crosstalk.
- It offers speeds/throughput of about 10 to 1000 Mbps.
- It offers a maximum cable length of about 100 meters.
Benefits or Advantages of UTP
Here are the benefits of using UTP cables:
- Smaller Size: They are smaller in size, making installation easier as they don’t fill up wiring ducts as quickly.
- Less Expensive: Compared to other networking media types, UTP is less expensive.
- Thin and Flexible: UTP is thin and flexible, which further simplifies installation.
- Industry Standard: UTP cables are a widely accepted industry standard for Ethernet networking. This ensures compatibility with a vast array of networking equipment and devices, simplifying network planning, deployment, and troubleshooting.
- Adequate Performance in Low EMI Environments: While not as resistant to electromagnetic interference as shielded cables, UTP cables perform adequately in most environments, especially in residential and office settings where EMI is typically low.
Drawbacks or Disadvantages of UTP
Here are the drawbacks of using UTP cables:
- Susceptibility to Interference: UTP cables are more susceptible to electromagnetic interference (EMI) and radio frequency interference (RFI) compared to shielded alternatives like STP cables. This can lead to signal degradation and potential data transmission errors, particularly in environments with high EMI/RFI levels.
- Shorter Transmission Distance: UTP cables have a shorter maximum transmission distance compared to shielded cables. While advancements in cable categories (e.g., Cat6, Cat6a) have improved performance, UTP cables are still limited in their ability to transmit data over long distances without signal degradation.
- Lower Security: UTP cables do not offer the same level of security against signal interception or eavesdropping as shielded cables. The lack of shielding makes it easier for external parties to tap into the cable and intercept data transmissions, posing potential security risks.
- Poor Performance in Harsh Environments: UTP cables may not perform well in harsh environmental conditions or high-noise environments where shielding is necessary for maintaining signal integrity.
- Scalability Limitations: While UTP cables offer scalability to a certain extent through different cable categories, upgrading to higher-performance categories may require replacing existing cabling infrastructure, which can be disruptive and costly.
Conclusion
Despite their vulnerabilities to interference, UTP cables remain the preferred choice for many networking applications due to their cost-effectiveness, ease of installation, and widespread compatibility. However, the selection of UTP vs. shielded cables should be based on the specific requirements and environmental conditions of the networking infrastructure.
