Switches and routers are fundamental networking devices, each serving distinct purposes in the management and routing of data within a network. Switches excel at efficiently forwarding data within a local network (LAN) based on MAC addresses. In contrast, routers are designed to route data between different networks (LANs or WANs) using IP addresses. Both devices are crucial for modern networking, with switches managing local traffic and routers handling data routing between networks.
Here’s a brief explanation of each:
Network Switch
A network switch performs the following functions:
- Connects multiple devices and ports together within a network.
- Connects two or more nodes within the same network or different networks (primarily wired connections).
- Operates at the data link layer (Layer 2) of the OSI model, dealing with MAC addresses.
- Creates and maintains a switch table to efficiently forward data packets.

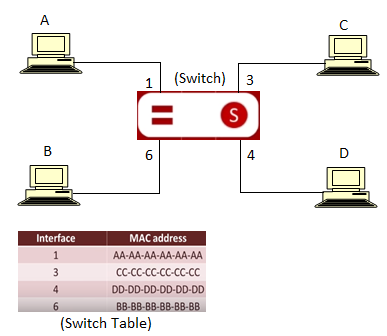

Image Alt: Switch connectivity in network
Let’s understand how a switch works. Initially, when a switch receives data from node A, it forwards it to all nodes. The switch then creates an entry in its switch table, associating the MAC address of Host A with its port. Later, when node C sends a packet to node A, the switch already has an entry for node A, knowing the port to which it’s connected. Consequently, the switch forwards the packet directly from node C to the port connected to node A.
Switches are commonly used in Ethernet networks to build local networks with multiple devices, such as computers, printers, and other networked devices.
Network Router
A network router performs the following functions:
- Forwards data packets between networks.
- Directs data flow within a network.
- Connects two or more networks (wired/wireless).
- Operates at the network layer (Layer 3) of the OSI model, dealing with IP addresses.

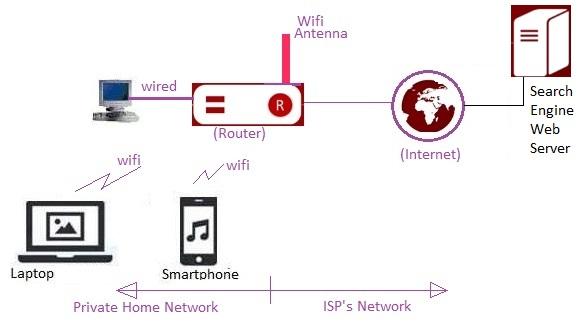

Image Alt: Router connectivity in network
Here’s how a router works: The router examines the IP addresses in the packet and, based on this information, ensures that the packet is passed between networks until it reaches its final destination. This process bridges the gap between your home network and your Internet Service Provider’s (ISP) network. The ISP network provides connectivity to web servers, like those of search engines such as Google, Yahoo, Ask, and Bing.
Unlike switches, which primarily work with wired networks, routers support both wired and wireless connections. Routers include Wi-Fi antennas and built-in Wi-Fi protocols to facilitate wireless connectivity. All network devices that support Wi-Fi protocols can use a router to access the internet.
Routers often perform Network Address Translation (NAT), allowing multiple devices on a local network to share a single public IP address when accessing the internet.
Routers are essential for controlling data flow between networks, ensuring data arrives at the correct destination, and providing security through features like firewall capabilities.
Difference Between Switch and Router in Networking
The fundamental difference between switches and routers lies in their network functions and the layers at which they operate. The following table summarizes a major comparison between these networking devices.
| Characteristic | Switch | Router |
|---|---|---|
| Function and addressing mechanism | Determines destination address using MAC address, transferring data. | Uses IP address to determine the destination. |
| Traffic handling | Transfers data between LAN segments. | Transfers data between LAN and WAN segments. |
| Layer of operation | Operates at Layer 2 (data link layer) of the OSI model. | Operates at Layer 3 (network layer) of the OSI model. |
| Scalability | Typically used within LANs or network segments. | Used for connecting multiple LANs or WANs. |
| Network segmentation | Useful for creating network segments within a LAN. | Essential for separating and connecting distinct networks. |
| Internet connectivity | Does not provide direct internet connectivity. | Connects LANs to the internet via an ISP or gateway. |
| Medium connectivity | Offers wired connectivity in the network. | Offers both wired and wireless connectivity. |
| Network Address Translation (NAT) | Does not perform NAT. | Often performs NAT for private LANs accessing the public internet. |
| Broadcast handling | Broadcasts data within the same network segment. | Does not forward broadcasts between network segments. |
| Security features | Lacks advanced security features. | May include firewall capabilities and security protocols. |
| Example devices | Ethernet switch, VLAN switch | Home router, enterprise router, core router |
Conclusion
Switches, functioning at the data link layer (Layer 2), primarily manage local traffic within a single network segment by efficiently forwarding data based on MAC addresses. Conversely, routers, operating at the network layer (Layer 3), play a crucial role in routing data between distinct networks or segments, relying on IP addresses.
This variation in their roles and layers of operation determines their respective applications, with switches focusing on intra-network traffic management and routers facilitating inter-network connectivity, including functions like Network Address Translation (NAT) and firewalling for enhanced network control and security.
