SIP vs. PRI Trunking: Key Differences, Advantages, and Disadvantages

sip trunking
pri trunking
voip
telecommunication
network

Both SIP (Session Initiation Protocol) trunking and PRI (Primary Rate Interface) trunking share the same core objective: connecting an organization’s private branch exchange (PBX) to the public switched telephone network (PSTN), effectively providing external voice communication capabilities.

Both systems are capable of handling multiple voice channels concurrently, allowing several calls to occur simultaneously. However, they differ in their approach. PRI lines offer a fixed number of channels (23 or 30 per line), while SIP trunks can dynamically adjust the number of channels based on available bandwidth.

Both technologies aim to deliver reliable, high-quality voice communication, but they achieve this in different ways. PRI relies on dedicated physical lines, whereas SIP leverages IP networks, often incorporating Quality of Service (QoS) configurations.

Let’s delve into how each of these technologies functions, exploring their respective advantages and limitations.

Session Initiation Protocol (SIP) Trunking

SIP trunking is a method used in Voice over Internet Protocol (VoIP) communications. It enables businesses to connect their private branch exchange (PBX) systems to the internet, supporting voice, video, and other unified communications services.

Essentially, SIP trunking replaces traditional telephone lines (like T1 or analog lines) by utilizing the internet to transmit voice data. This allows companies to make and receive calls over the internet instead of the traditional public switched telephone network (PSTN).

How SIP Trunking Works

  • SIP Protocol: SIP is a signaling protocol that initiates, maintains, modifies, and terminates real-time communication sessions involving video, voice, messaging, and other communication applications.
  • Trunk Definition: A “trunk” refers to a bundle of network lines carrying multiple signals simultaneously. In SIP trunking, a “trunk” is a virtual equivalent of an analog phone line.
  • Connection: SIP trunks connect a business’s on-premises PBX system (or a cloud-based PBX) to the internet via an Internet Service Provider (ISP). This enables businesses to make and receive calls directly over the internet.

SIP Trunking

Advantages of SIP Trunking

Here’s a breakdown of the benefits offered by SIP Trunking:

  1. Cost Reduction: SIP trunking significantly reduces costs by eliminating the need for physical phone lines, lowering long-distance call charges, and decreasing overall telecommunication expenses.
  2. Scalability: It’s easy to scale SIP trunks up or down based on your business needs. You can add or remove lines without the complexity of installing new hardware.
  3. Unified Communications: SIP trunking supports unified communications, allowing voice, video, messaging, and other services to be accessed from anywhere with an internet connection.
  4. Built-in Redundancy: SIP trunking offers built-in redundancy, meaning calls can be rerouted through other trunks or data centers in case of an outage, ensuring business continuity.
  5. Advanced Features: Businesses can access advanced communication features such as call forwarding, voicemail-to-email, and video conferencing, which are often included in SIP trunking services.
  6. Simplified Management: Managing communications infrastructure becomes easier with SIP trunking, as everything is consolidated under one protocol and managed via software.

Disadvantages of SIP Trunking

Consider these potential drawbacks of SIP Trunking:

  1. Internet Dependency: SIP trunking requires a reliable, high-speed internet connection. Poor internet quality can negatively affect call quality, leading to dropped calls or delays.
  2. Security Risks: VoIP and SIP trunking are susceptible to cyber threats like hacking, eavesdropping, and toll fraud. Proper security measures like encryption, firewalls, and secure protocols are necessary to protect communications.
  3. Network Management: Without proper network management, SIP trunking can suffer from latency, jitter, and packet loss, which can degrade call quality. Hence, QoS settings and proper bandwidth allocation are crucial.
  4. Setup Complexity: Although SIP trunking can save costs in the long run, the initial setup and configuration may require specialized knowledge and can be complex, especially when integrating with existing PBX systems.
  5. Power Dependency: Since SIP trunking relies on the internet, it also depends on power availability. In case of a power outage, businesses might need backup power solutions to keep communications running.

Primary Rate Interface (PRI) Trunking

Primary Rate Interface (PRI) trunking is a telecommunications standard used to carry multiple voice, data, and video transmissions between a private branch exchange (PBX) and the public switched telephone network (PSTN).

It is a type of Integrated Services Digital Network (ISDN) service designed for large-scale business communication needs.

A PRI line consists of 23 bearer channels (B-channels) for voice and data transmission and one signaling channel (D-channel) for control and signaling information, totaling 24 channels on a T1 line in North America, or 30 B-channels and 1 D-channel on an E1 line in Europe.

How PRI Trunking Works

  • B-Channels: The B-channels are used for carrying voice, video, or data. Each channel typically offers 64 Kbps bandwidth.
  • D-Channel: The D-channel is dedicated to call setup, teardown, and other signaling functions. It manages the signaling and control information for the B-channels.
  • PBX Integration: PRI trunks connect the PBX system to the PSTN, which allows businesses to manage multiple phone calls simultaneously over a single PRI circuit.

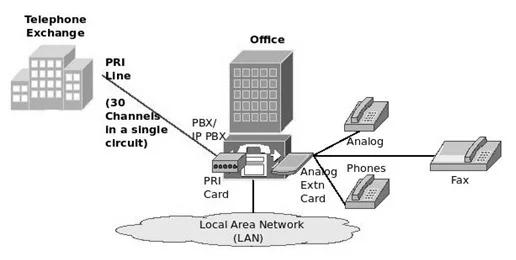

PRI Trunking

Advantages of PRI Trunking

Here’s a look at the benefits of PRI Trunking:

  1. Consistent Call Quality: PRI lines provide dedicated connections with guaranteed bandwidth, leading to consistent and high-quality voice calls without issues like jitter or latency commonly associated with VoIP.
  2. High Reliability: PRI trunking is known for its reliability and uptime, as it uses traditional T1/E1 lines that are less susceptible to outages compared to internet-based communications.
  3. Simultaneous Calls: With 23 (T1) or 30 (E1) channels available, PRI trunking allows multiple simultaneous calls, making it ideal for businesses with high call volumes.
  4. Enhanced Security: Unlike VoIP services that run over the public internet, PRI lines are private and secure, reducing the risk of eavesdropping and cyber threats.
  5. Direct Inward Dialing (DID): PRI trunking supports DID, allowing businesses to assign unique phone numbers to individual employees or departments without the need for multiple physical lines.
  6. Consistent Performance: Since PRI trunking doesn’t rely on internet connections, it delivers consistent performance without being affected by internet traffic fluctuations or bandwidth issues.

Disadvantages of PRI Trunking

Consider these limitations of PRI Trunking:

  1. Higher Costs: PRI trunks involve higher upfront and ongoing costs compared to SIP trunking, including the need for specialized hardware and monthly line rental fees.
  2. Limited Scalability: PRI trunks offer fixed scalability; each T1 line provides only 23 channels. Adding capacity requires installing additional lines, which can be costly and logistically complex.
  3. Lack of Modern Features: Unlike SIP trunking, PRI is less adaptable to the needs of modern businesses that require integration with internet-based services and unified communications platforms.
  4. Complex Installation: PRI relies on physical copper or fiber lines, which means installation and maintenance can be more complex and time-consuming compared to IP-based solutions.
  5. Declining Support: As the telecom industry shifts towards IP-based communications, PRI is becoming an older technology with decreasing support and availability, pushing businesses to eventually transition to newer systems like SIP trunking.
  6. Limited Redundancy: PRI trunks lack the inherent redundancy and failover capabilities of SIP trunks, as each line is a single point of failure unless additional redundancy measures are put in place.

Difference between SIP and PRI Trunking

FeatureSIP trunkingPRI trunking
TechnologyInternet based, uses VoIP protocol (i.e. SIP)Circuit based, uses ISDN (i.e. T1/E1 lines)
Channels per lineVirtual channels; capacity depends on bandwidthFixed channels : 23 for T1 or 30 for E1 per line
ScalabilityHighly scalable, add or remove channels easilyLimited scalability; must add entire lines for extra capacity
CostLower costs; no need for physical lines, flexible pricingHigher costs; requires physical lines and monthly fees.
Setup and maintenanceEasier setup; managed via software, less hardwareMore complex; requires specific hardware and regular upkeep.
Call QualityDepends on internet quality and bandwidth management.Consistently high, dedicated bandwidth ensures quality.
ReliabilityDependent on internet; redundancy options available.Highly reliable; dedicated lines with fewer disruptions.
FlexibilitySupports voice, video, messaging, and unified communications.Limited to voice and some data; less adaptable.
SecurityNeeds robust security measures against VoIP threats.More secure with dedicated lines, less prone to cyber threats.
RedundancyEasy to implement with failover options across providers.Limited redundancy; typically requires additional lines.
IntegrationIntegrates well with modern IP-based and cloud systems.Less compatible with newer communication technologies.
DependencyDependent on reliable internet connection.Dependent on physical line infrastructure.
Future ViabilityGrowing adoption; aligns with the shift to IP communications.Gradually being phased out; fewer providers and support.

Conclusion

The major difference between SIP trunking and PRI trunking lies in their technology and scalability. SIP trunking uses internet-based connections (VoIP) to transmit voice data, offering high scalability, flexibility, and cost-effectiveness by allowing the addition or removal of channels as needed.

PRI trunking, on the other hand, uses traditional circuit-switched technology over physical lines (T1/E1), providing a fixed number of channels (23 or 30 per line) and is generally less flexible and more costly to scale. SIP trunks support modern features like video calls and integration with cloud services, whereas PRI is limited to voice and basic data.

Moreover, SIP trunking is more suited to businesses with modern, IP-based infrastructure, while PRI trunking appeals to those maintaining legacy systems.
