Network Topologies: Bus, Star, and Ring - Advantages & Disadvantages

This article explores the benefits and drawbacks of various network topologies, namely bus, star, and ring networks.

What is Network Topology?

Network topology describes how the elements of a network are mapped, encompassing both the physical and logical arrangements of network nodes. In simpler terms, it refers to the configuration of cables, computers, and other peripherals within a network.

Types of Network Topologies

Several types of network topologies exist, including:

• Bus topology
• Star topology
• Ring topology
• Mesh topology
• Tree topology
• Hybrid topology

Let’s delve into the advantages and disadvantages of bus, star, and ring network topologies.

Bus Network Topology

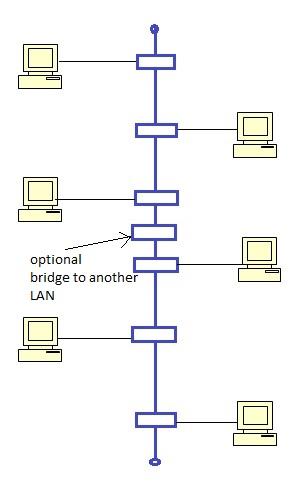

In a bus network topology, all nodes are connected to a single cable that runs from one end of the network to the other. An example of this is a LAN network.

Advantages of Bus Network Topology

• Cost-effective: It is inexpensive, easy to install, and straightforward to implement.
• Minimal cabling: Requires less cable compared to other topologies.
• Suitable for small networks: Best suited for small networks such as LANs.
• Direct communication: Any two stations can communicate directly without interference from other nodes.
• Easy expansion: Additional nodes can be added without disrupting existing services.
• Versatile cabling: Uses coaxial cable or twisted pair, allowing for transmissions in both directions.
• Fast communication: Offers the fastest speeds due to direct communication between nodes.

Disadvantages of Bus Network Topology

• Limited cable length: The cable length is limited, restricting the number of stations the network can support.
• Performance degradation: Performance suffers with a large number of nodes.
• Difficult fault isolation: Identifying and isolating faults can be challenging.
• Signal reflection issues: Susceptible to signal reflections at the ends and joints of the cable, requiring careful planning.
• Complex optical implementations: Optical fiber-based bus networks require bi-directional optical couplers for two-way communication.

Star Network Topology

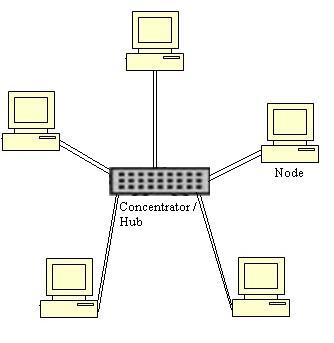

In a star network, each node is connected to a central device, such as a concentrator or hub. These nodes can include file servers, workstations, and peripherals. The hub receives signals from any node and passes them to all other nodes on the network. Data in a star network passes through the hub/switch/concentrator before reaching its destination. The hub/switch/concentrator manages and controls the functions of the network.

Advantages of Star Network Topology

• Centralized control: All nodes are connected to a central node, reducing the risk of complete network failure. Only faulty nodes require repair.
• Easy management: Simpler to manage compared to other topologies.
• Easy installation and wiring: Nodes are easy to install and wire.
• Easy problem location: Problems are easier to locate.
• Easy to expand: Easier to expand compared to bus and ring network topologies.

Disadvantages of Star Network Topology

• Increased cabling: Requires more cable length compared to linear topologies.
• Central point of failure: If the hub or concentrator fails, all attached nodes are disabled. Redundant hubs are often used for critical situations.
• Higher cost: More expensive due to the cost of concentrators.

Ring Network Topology

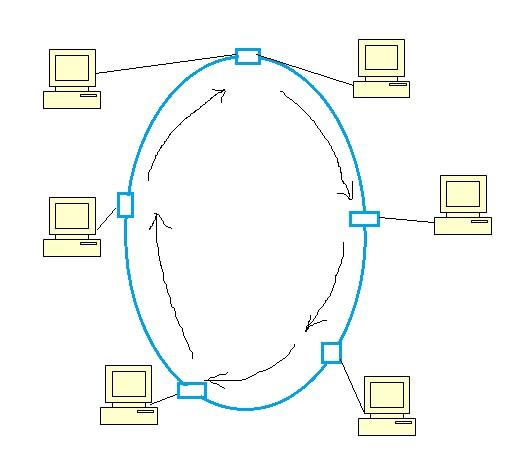

In a ring network, all nodes are connected end-to-end, forming a loop. Each node has a connection with two other nodes, one to its left and the other to its right. There is no central node, and all nodes have some control functionalities, allowing them to identify their own address and perform retransmission. The message format consists of the destination node address followed by the data payload. A token (a small data packet) is continuously passed around the network. When a node needs to transmit, it reserves the token for the next trip around and attaches its data packet to it.

Advantages of Ring Network Topology

• Easy management and fault isolation: Easier to manage, with straightforward fault isolation.
• Low cost: The lowest cost among all network topologies.
• Orderly network: Every device has access to the token and an opportunity to transmit.
• Long-distance communication: Provides good communication over longer distances.
• High traffic volume handling: Handles traffic with high volume efficiently.

Disadvantages of Ring Network Topology

• Single point of failure: Failure of any cable or node can break the entire network. Restoration can be time-consuming.
• Disruptive expansion: Adding an extra node requires shutting down the entire network, disrupting services to operational nodes.
• Slow speed: Provides the slowest speed, as nodes are accessed sequentially.
• Performance sensitivity: Any movement or change made to any nodes can affect the performance of the entire network.
