This article compares LAN (Local Area Network) and VLAN (Virtual Local Area Network), highlighting the key differences between them.

What is a LAN?

LAN stands for Local Area Network. It refers to a network where devices (hosts) are connected on the same Ethernet switch using different ports.

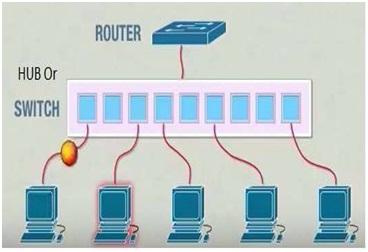

LAN network

The common devices used in a LAN are hubs and switches.

  • Hubs: Hubs share data between computers using a broadcast address. The host sends a frame to the entire network and all ports of the switch. Only the intended host, as determined by the destination address, processes the frame, while others ignore it. This can lead to increased traffic on the switch.

  • Switches: Switches share data using unicast addresses, allowing two hosts to communicate directly within the same switch. Hosts not on the same switch can communicate through routers.

What is a VLAN?

VLAN stands for Virtual Local Area Network. It is also referred to as Virtual LAN.

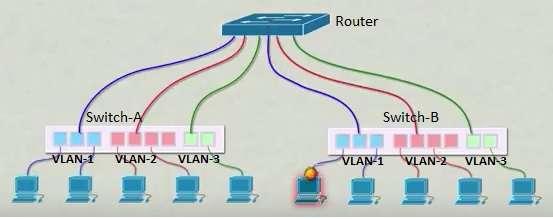

VLAN network

A VLAN is configured on an Ethernet switch. Unlike a single LAN, multiple Virtual LANs can be implemented on a single switch. This is achieved by splitting and assigning a number of ports to different VLANs.

Broadcast, multicast, and other unknown destination traffic originating from one VLAN (e.g., VLAN-A) are limited to members of the same VLAN-A. The traffic doesn’t cross to other VLANs within the switch, which reduces the traffic load on the Ethernet switch.

LAN vs. VLAN: A Tabular Comparison

The following table highlights the similarities and differences between LAN and VLAN network types:

FeaturesLANVLAN
Full FormLocal Area NetworkVirtual Local Area Network
DevicesHubs and switches are used in LANSwitches with VLAN tagging capabilities are used.
CoverageHost (i.e., node) to host communication within the buildingHost-to-Host Communication between buildings which are far away beyond LAN limit. This is possible as VLANs can span multiple switches in different premises.
ProtocolsNormal Ethernet frame is used.Uses protocols such as IEEE 802.1Q and VLAN Trunk protocol (VTP). These protocols help traffic to be routed to correct interfaces.
Ports to subnet mappingPorts cannot be moved between different subnetsPorts can be moved between subnets easily on the same switch. Different VLANs on the same switch can have different numbers of ports.
Number of LAN/VLANsOne LAN consisting of multiple hosts on one switchMany VLANs can coexist on the same Ethernet switch. Each VLAN will have a different number of ports.
Software configurationNot neededConfiguration is needed for tagging in order to configure VLAN
ApplicationSharing of common resources and interconnectivity between hostsSame as mentioned in LAN. Additionally, extends LAN capabilities with easy configurability and less burden on the Ethernet switch.
