PSK Advantages and Disadvantages: Phase Shift Keying

This page explores the advantages and disadvantages of Phase Shift Keying (PSK), a digital modulation technique.

What is PSK? An Introduction

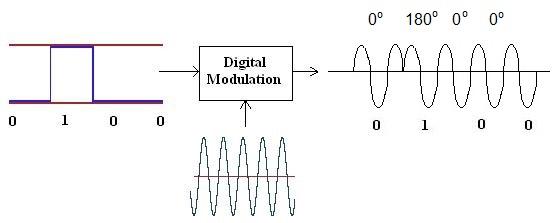

PSK stands for Phase Shift Keying. It’s a digital modulation technique that uses the phase of an analog carrier wave to represent digital binary data. Essentially, the phase of the carrier wave is changed according to the binary inputs (1 or 0). In a two-level PSK, a phase shift of 180 degrees is used to differentiate between binary 1 and binary 0.

Many different modulation techniques utilize this concept to transmit digital binary data, including two-level PSK (BPSK), four-level PSK (QPSK), and more complex schemes like 16-QAM, 64-QAM, and 256-QAM, which employ both amplitude and phase variations.

Two-level PSK represents a single bit with each signaling element, while four-level PSK represents two bits, and so on. For instance, 8-PSK represents three bits per signaling element.

The following equations represent BPSK:

• For Binary 1: s(t) = A*cos(2*π*fc*t)
• For Binary 0: s(t) = A*cos(2*π*fc*t + π)

As mentioned, there are many variants of PSK modulation. Each of these has its own set of pros and cons.

Benefits (Advantages) of PSK

Here are the benefits of using PSK:

• Efficient RF Signal Data Transmission: PSK carries data over RF signals more efficiently compared to other modulation types, making it a more power-efficient modulation technique compared to ASK and FSK.
• Lower Error Susceptibility: It’s less susceptible to errors compared to ASK modulation while occupying the same bandwidth.
• Higher Data Rates: Higher data transmission rates can be achieved using higher-level PSK modulations like QPSK (2 bits per constellation) and 16-QAM (4 bits per constellation).

Drawbacks (Disadvantages) of PSK

The downsides of PSK include:

• Lower Bandwidth Efficiency: PSK has a lower bandwidth efficiency.
• Complex Decoding: The binary data is decoded by estimating the phase states of the signal. These detection and recovery algorithms are very complex.
• Phase Synchronization Challenges: Coherent detection, often used in PSK demodulation, requires accurate phase synchronization between the transmitter and receiver. Achieving and maintaining this synchronization can be challenging.
• Sensitivity to Phase Variations: Multi-level PSK modulation schemes (QPSK, 16QAM, etc.) are more sensitive to phase variations.
• FSK Similarity & Lower Bandwidth Efficiency (Compared to ASK): It’s also a form of FSK, so it offers lower bandwidth efficiency compared to ASK modulation.
• Sensitivity to Phase Noise: PSK modulation is sensitive to phase noise, which can arise from imperfections in the transmitter or distortions in the communication channel. This sensitivity can affect the quality of the demodulated signal.
• Performance in Non-Ideal Channels: PSK modulation may exhibit reduced performance in non-ideal channel conditions, such as frequency-selective fading or multipath propagation.

Conclusion

In summary, PSK modulation offers advantages such as improved bandwidth efficiency, reduced power consumption, and suitability for high data rates. However, it may be sensitive to phase noise, and the complexity of implementation can increase with higher-order PSK schemes such as 8-PSK and 16-PSK.
