MSK and GMSK: Advantages and Disadvantages

modulation
gmsk
msk
spectral efficiency
signal processing

This page covers the advantages and disadvantages of Minimum Shift Keying (MSK) and Gaussian Minimum Shift Keying (GMSK) modulation techniques. We’ll explore what makes them useful and where they fall short.

What are MSK and GMSK?

MSK and GMSK are types of frequency-shift keying (FSK) modulation. GMSK is actually derived from the basic MSK scheme.

Standard Phase-Shift Keying (PSK) modulation has sidebands that extend out from the carrier frequency. MSK and GMSK were developed to address this issue.

MSK

MSK is a type of FSK modulation that occupies less bandwidth, reducing interference. It uses a half cycle of a sine wave for each symbol. When you apply a Gaussian filter to MSK, you get a GMSK signal.

For a deeper dive, refer to resources that explain the basics of MSK and GMSK.

Benefits (Advantages) of MSK and GMSK

Here are the reasons why MSK and GMSK are beneficial:

  • Reduced Sideband Power: These techniques minimize the sidebands of the PSK modulated spectrum, leading to reduced sideband power.
  • Good Signal-to-Noise Ratio (SNR): MSK and GMSK are less affected by noise, resulting in a good SNR. This is crucial for stable, long-distance communication. It’s why GMSK is used in GSM technology.
  • Improved Receiver Sensitivity: The good SNR translates to better receiver sensitivity.
  • Low Peak-to-Average Power Ratio (PAPR): Phase continuities are avoided, and frequency changes occur at zero crossings of the RF carrier, keeping PAPR low. This means you don’t need a highly linear power amplifier (PA).
  • Spectral Efficiency: They offer better spectral efficiency with a less complex demodulator.
  • Constant Envelope (GMSK): GMSK maintains a constant envelope across the entire bandwidth, providing excellent power efficiency.
  • Good Bit Error Rate (BER) Performance: They provide solid BER performance.
  • Self-Synchronization (GMSK): GMSK has self-synchronizing capabilities.
  • Good for Voice Modulation: GMSK is a great choice for voice modulation.

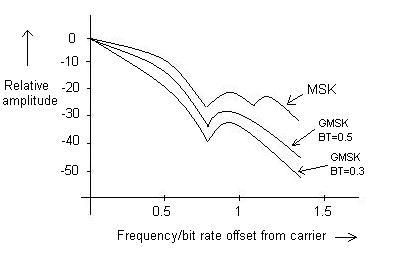

MSK and GMSK spectral density

Drawbacks (Disadvantages) of MSK and GMSK

Here are the downsides to using MSK and GMSK:

  • Adjacent Channel Interference (MSK): The power spectral density (PSD) of MSK doesn’t fall off quickly, which can lead to interference between adjacent channels. GMSK, using a BT of 0.3 (where B is the 3dB bandwidth of the shaping filter and T is the bit duration), helps achieve better rejection between adjacent channels.
  • Higher Power Requirement: MSK and GMSK require more power to transmit data compared to other modulation types like QPSK.
  • Complex Channel Equalization: They require complex channel equalization algorithms, such as an adaptive equalizer at the receiver.
  • Inter-Symbol Interference (ISI): Inter-symbol interference can occur.
