This article compares GPS (Global Positioning System) and U-TDOA (Uplink Time Difference of Arrival), outlining their differences. GPS and U-TDOA are both technologies used for locating devices, but they operate in fundamentally different ways.

U-TDOA, an uplink method, shares similarities with downlink OTDOA. As emergency calls from mobile phones continue to rise, the need for accurate location services becomes critical. Victims making these calls could be anywhere – indoors, in tall buildings, or in remote areas. Pinpointing their exact location is vital for providing timely emergency services. Various methods exist for mobile location, including A-GNSS, GPS, GLONASS, OTDOA (Downlink Observed Time Difference of Arrival), and U-TDOA (Uplink Time Difference of Arrival).

GPS: Global Positioning System

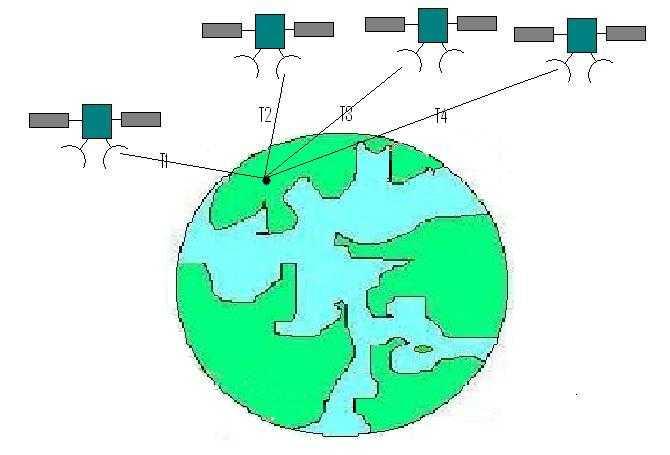

GPS system to determine position in 3D

GPS utilizes GPS chips within the mobile phone (UE) to receive signals from orbiting satellites. The phone then calculates its position based on the distance from these satellites. A minimum of four satellites is required to determine a 3D position, as illustrated in Figure 1.

The GPS chip determines the arrival times (T1, T2, T3, and T4) of signals transmitted by the satellites, relative to an internal time reference. Using these times, along with the known speed of light, the GPS receiver chip calculates its position on Earth.

Distance = Transit Time x Speed of Light

(Where the speed of light is a known constant, approximately 3 x 108 m/s.)

U-TDOA

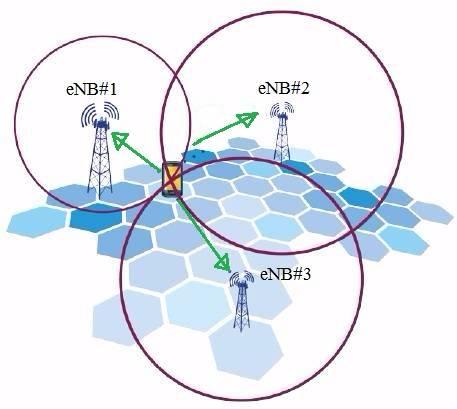

U-TDOA relies on sensitive receivers located in cell towers (eNBs/Base Stations) to receive signals from the mobile phone (UE). The position of the UE is then calculated based on the time difference in which the signal arrives at various cell towers.

Similar to downlink OTDOA, U-TDOA uses uplink transmissions to determine the UE’s location.

GPS vs. U-TDOA: A Detailed Comparison

FeatureGPSU-TDOA
Full FormGlobal Positioning SystemUplink Time Difference of Arrival
MethodologyUses GPS satellites to determine the UE’s (Mobile phone) position.Uses the time difference of arrival of uplink signals by multiple eNBs to determine the UE’s position. The positions of the eNBs are pre-defined, aiding in UE position estimation.
Line of Sight (LOS)Requires an unobstructed LOS (line of sight) between the mobile phone and GPS satellites for effective operation.eNBs use highly sensitive receivers that can receive mobile phone signals even through buildings, allowing for accurate location determination in challenging environments.
ObstructionsTrees and buildings can block satellite signals, hindering performance in densely populated areas or forests.Trees do not significantly block signals, allowing for easier location of the UE.
Emergency SituationsLess effective in emergency situations due to LOS requirements.Very effective for emergency situations, public safety, and national security applications.
